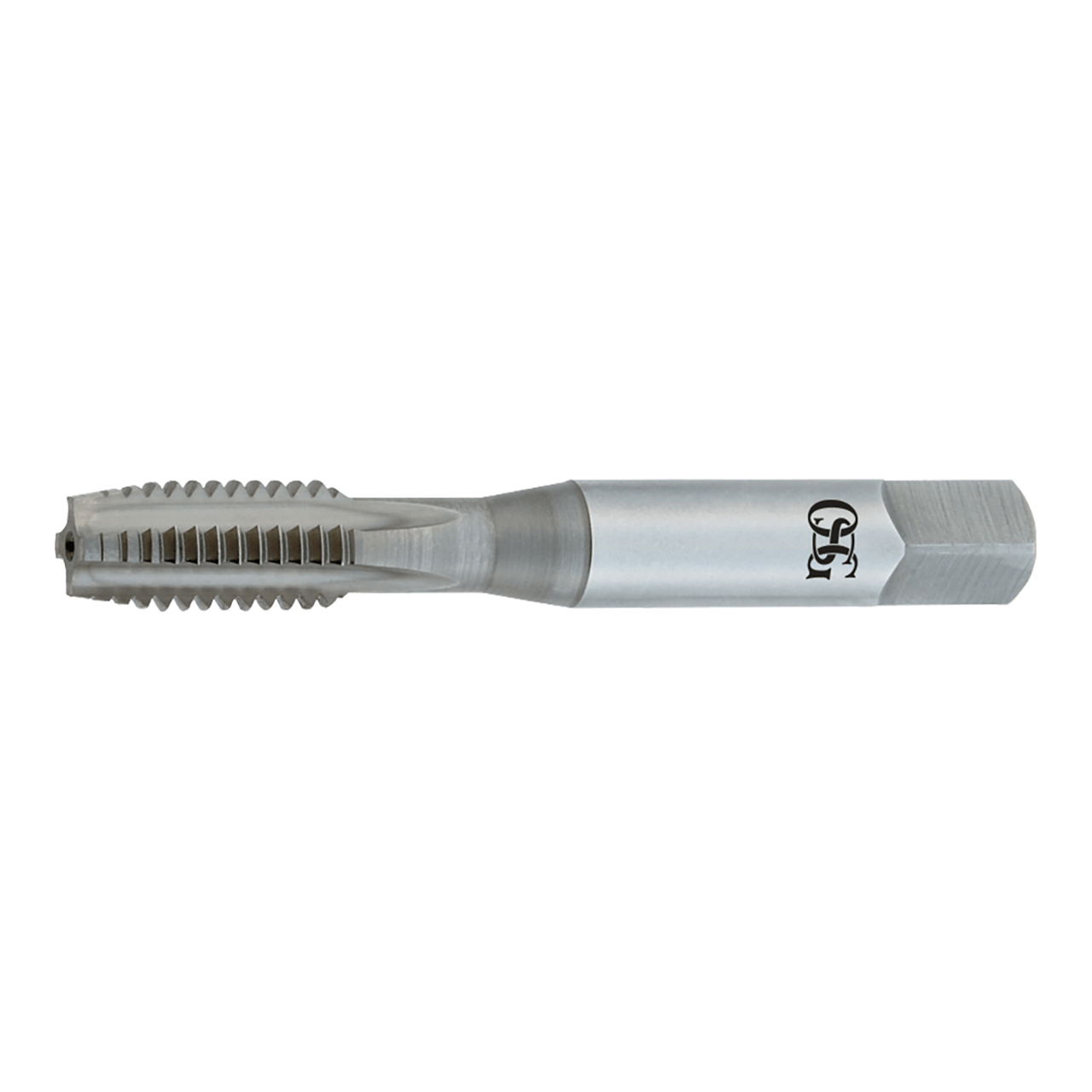

HYPRO DC Taps High Performance Straight Flute Tap for Aluminum.
| Manufacturer Part Number | 2404403 |
| Chamfer Length (Decimal Inch) | 0.083" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | DC EX-DC-HT |
| Major Diameter (Decimal Inch) | 0.313" |
| Neck Length (Decimal Inch) | 1.126" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.720" |
| Shank Diameter (Decimal Inch) | 0.318" |
| Square Length (Decimal Inch) | 0.375" |
| Square Width (Decimal Inch) | 0.238" |
| Material | HSSE |
| Coating | Nitride |
| Tap Drill Size Maximum (Decimal Inch) | 0.265" |
| Tap Drill Size Minimum (Decimal Inch) | 0.252" |
| Thread Length (Decimal Inch) | 0.665" |
| Thread Limit | H3 |
| Thread Size (Inch) | 5/16" |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 240 |
| Product Type | Straight Flute Tap |
