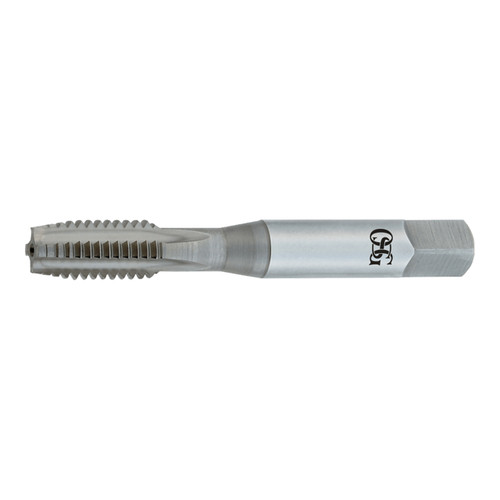

OSG 2493203 | HY-PRO #8- 32 Thread Size x 0.168" Shank x 0.374" Thread Length x 2.126" OAL UNC H3 Bottom (1.5P) Chamfer Type 3 Flute Right Hand Nitride Coated HSSE 240 Straight Flute Tap

$18.91 $11.54
(You save $7.37)
Brand:
OSG
Number of Flutes:
3
Overall Length (Decimal Inch):
2.1260"
Material:
HSSE
Finish/Coating:
Nitride
Thread Limit:
H3
interval quantity:
1
SKU:
18003262
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 2493203 | HY-PRO #8- 32 Thread Size x 0.168" Shank x 0.374" Thread Length x 2.126" OAL UNC H3 Bottom (1.5P) Chamfer Type 3 Flute Right Hand Nitride Coated HSSE 240 Straight Flute Tap

HYPRO DC Taps High Performance Straight Flute Tap for Aluminum.


Product Specifications
Manufacturer Part Number2493203
Chamfer Length (Decimal Inch)0.047"
Chamfer TypeBottom (1.5P)
Cutting DirectionRight Hand
List NameDC EX-DC-HT
Major Diameter (Decimal Inch)0.164"
Neck Length (Decimal Inch)0.752"
Number of Flutes3
Overall Length (Decimal Inch)2.126"
Shank Diameter (Decimal Inch)0.168"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.131"
MaterialHSSE
CoatingNitride
Tap Drill Size Maximum (Decimal Inch)0.139"
Tap Drill Size Minimum (Decimal Inch)0.130"
Thread Length (Decimal Inch)0.374"
Thread LimitH3
Thread SizeNo. 8
Thread Size (Number)#8
Thread TypeUNC
Thread Per Inch (TPI)32 TPI
Series240
Product TypeStraight Flute Tap
