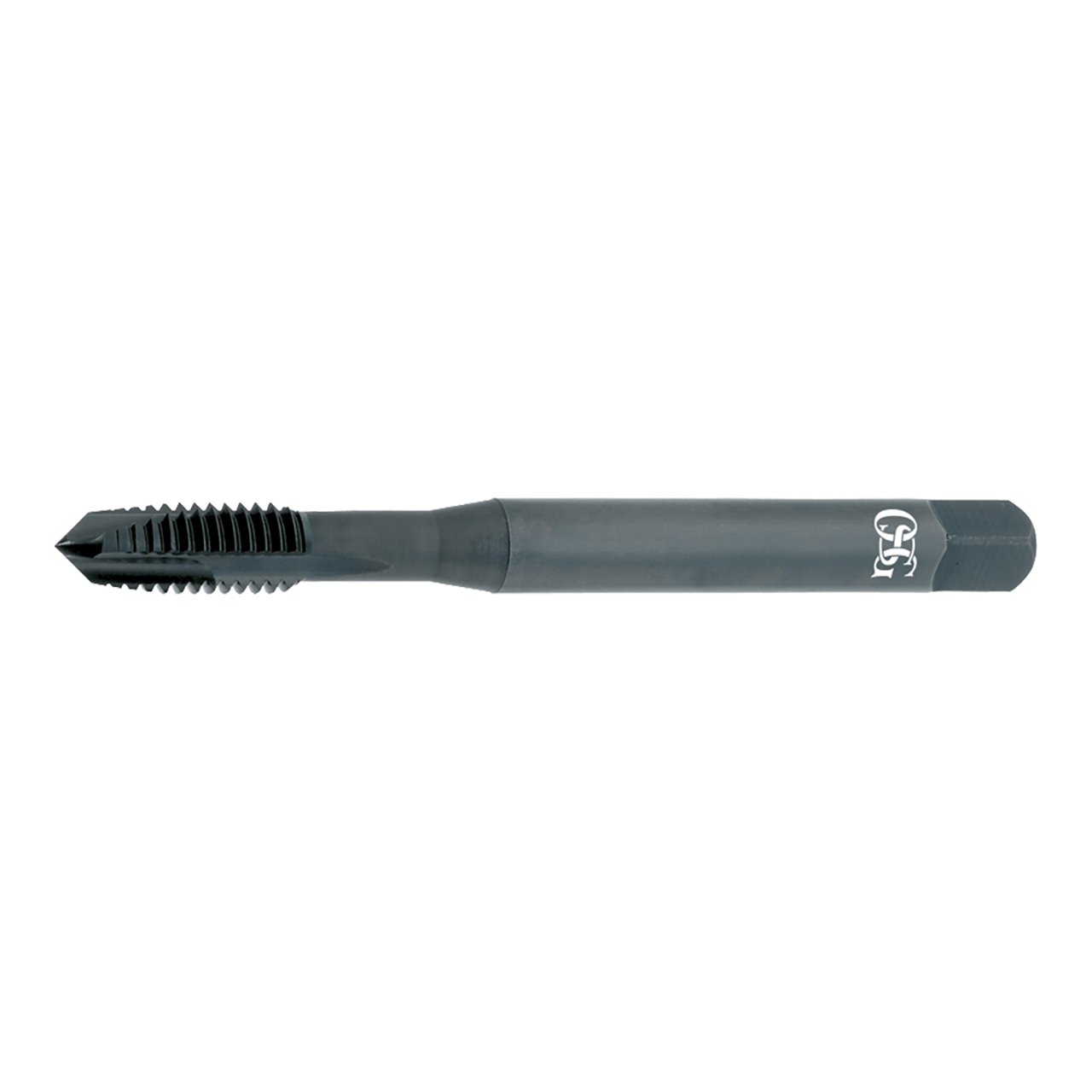

OSG 2592901 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 24.00mm Length x 11.00mm OAL Plug (4P) Chamfer 3 Flute Steam Oxide Coated HSSE 259 Spiral Point Tap

OSG 2592901 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 24.00mm Length x 11.00mm OAL Plug (4P) Chamfer 3 Flute Steam Oxide Coated HSSE 259 Spiral Point Tap

SKU: 18003317 Weight: 0.24 LBS Minimum Purchase: 1 unit
UPC:
$114.44 $69.81
(You save $44.63)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral point "gun" tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number2592901
Chamfer Length (Decimal Inch)0.315"
Major Diameter (mm)16.00mm
Neck Length (mm)36.00mm
Number of Flutes3
Overall Length (mm)110.00mm
Pitch (mm)2.00mm
Shank Diameter (mm)12.19mm
Square Length (mm)14.29mm
Square Width (mm)9.14mm
Maximum Tap Drill Size (mm)14.21mm
Minimum Tap Drill Size (mm)13.84mm
Thread Length (mm)24.00mm
Thread SizeM16
CoatingSteam Oxide
MaterialHSSE
Series259 Series
Product TypeSpiral Point Tap
