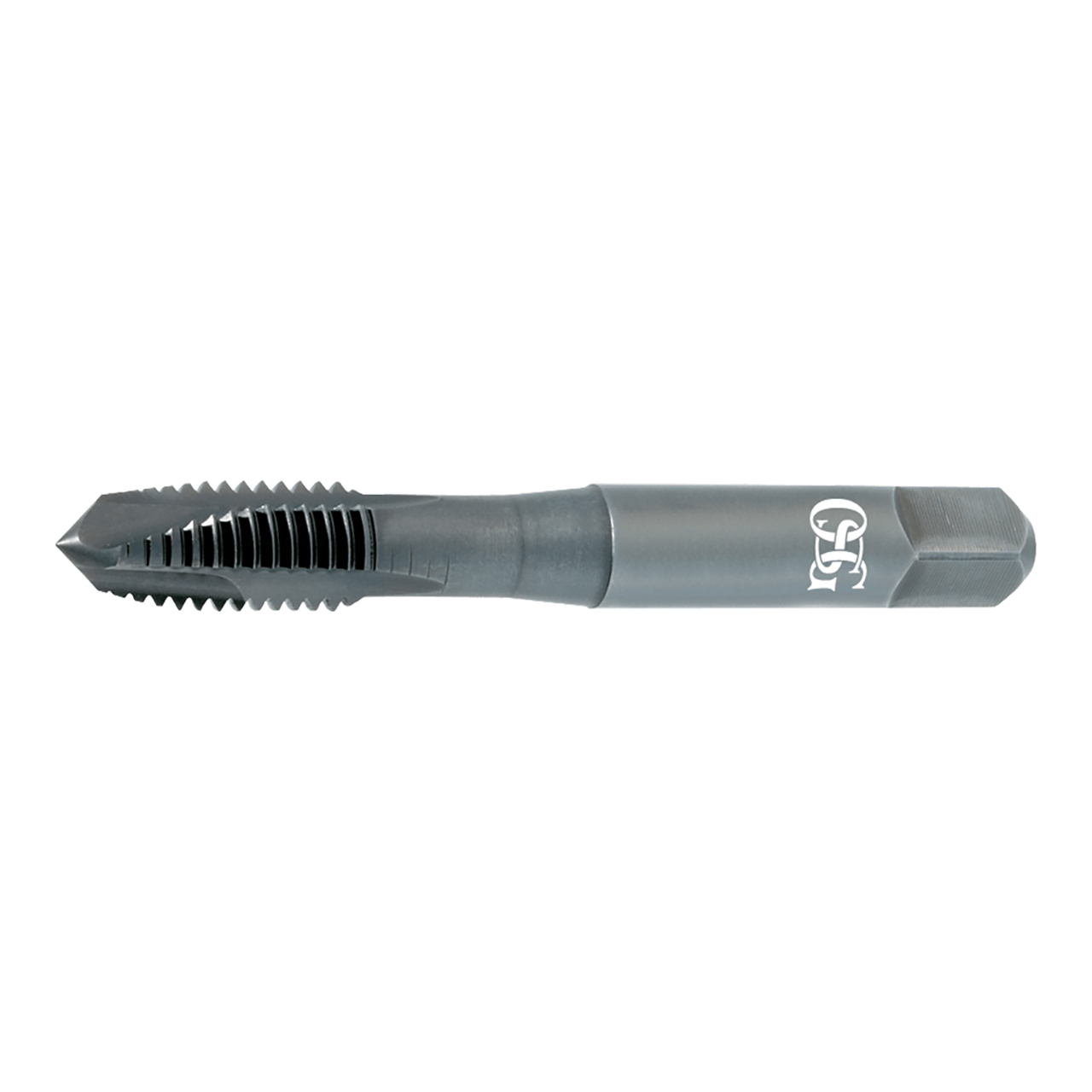

OSG 2832608 | HY-PRO TAP UNF 1/2" - 2 Thread Size x 0.367" Shank x 0.921" Length x 3.374" OAL Plug (4P) Chamfer H3 3 Flute TiCN Coated HSSE 280 Spiral Point Tap

OSG 2832608 | HY-PRO TAP UNF 1/2" - 2 Thread Size x 0.367" Shank x 0.921" Length x 3.374" OAL Plug (4P) Chamfer H3 3 Flute TiCN Coated HSSE 280 Spiral Point Tap

SKU: 18003606 Weight: 0.12 LBS Minimum Purchase: 1 unit
UPC:
$51.60 $31.48
(You save $20.12)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral point tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2832608
Chamfer Length (Decimal Inch)0.200"
Major Diameter (Decimal Inch)0.500"
Neck Length (Decimal Inch)1.354"
Number of Flutes3
Overall Length (Decimal Inch)3.374"
Shank Diameter (Decimal Inch)0.367"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.275"
Maximum Tap Drill Size (Decimal Inch)0.457"
Minimum Tap Drill Size (Decimal Inch)0.446"
Thread Length (Decimal Inch)0.921"
Thread Size (Inch)1/2"
CoatingTiCN
MaterialHSSE
Series280 Series
Product TypeSpiral Point Tap
