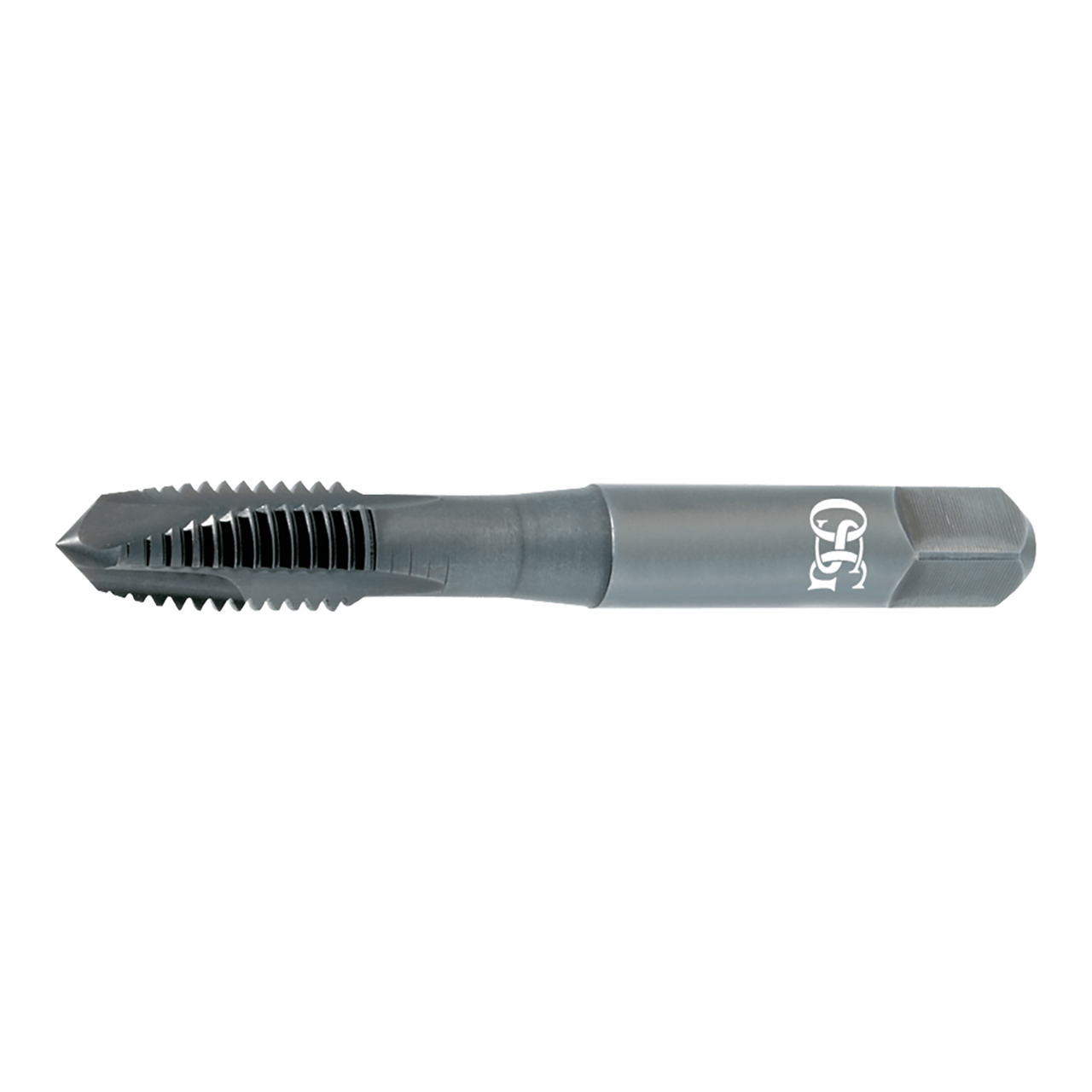

HY-PRO DIN is the original "Do it All" premium spiral point tap for a wide range of materials.
Features & Benefits:
| Manufacturer Part Number | 2857800 |
| Chamfer Length (Decimal Inch) | 0.222" |
| Major Diameter (Decimal Inch) | 0.563" |
| Neck Length (Decimal Inch) | 1.472" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.594" |
| Shank Diameter (Decimal Inch) | 0.429" |
| Square Length (Decimal Inch) | 0.500" |
| Square Width (Decimal Inch) | 0.322" |
| Maximum Tap Drill Size (Decimal Inch) | 0.515" |
| Minimum Tap Drill Size (Decimal Inch) | 0.502" |
| Thread Length (Decimal Inch) | 1.000" |
| Thread Size (Inch) | 9/16" |
| Coating | Bright |
| Material | HSSE |
| Series | 280 Series |
| Product Type | Spiral Point Tap |
