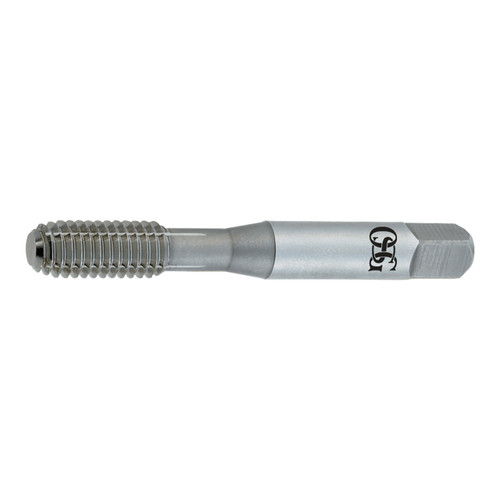

OSG 2864408 | HY-PRO TAP UNC #2 - 56 Thread Size x 0.141" Shank x 0.437" Length x 1.750" OAL Bottom (2.25P) Chamfer TiCN Coated HSS 285 Thread Forming Tap

OSG 2864408 | HY-PRO TAP UNC #2 - 56 Thread Size x 0.141" Shank x 0.437" Length x 1.750" OAL Bottom (2.25P) Chamfer TiCN Coated HSS 285 Thread Forming Tap

SKU: 18003763 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$51.19 $23.04
(You save $28.15)
Shipping: Calculated at Checkout

About This Item

Semi-premium taps made from premium high speed steel for general purpose tapping applications.

Features & Benefits:

  • 2B Class of Fit: Eliminates the need to choose the correct thread limit

Product Specifications
Manufacturer Part Number2864408
Chamfer Length (Decimal Inch)0.040"
Major Diameter (Decimal Inch)0.086"
Neck Length (Decimal Inch)0.476"
Overall Length (Decimal Inch)1.750"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.079"
Minimum Tap Drill Size (Decimal Inch)0.077"
Thread Length (Decimal Inch)0.437"
Thread Size NumberNo. 2
CoatingTiCN
MaterialHSS
Series285 Series
Product TypeThread Forming Tap
