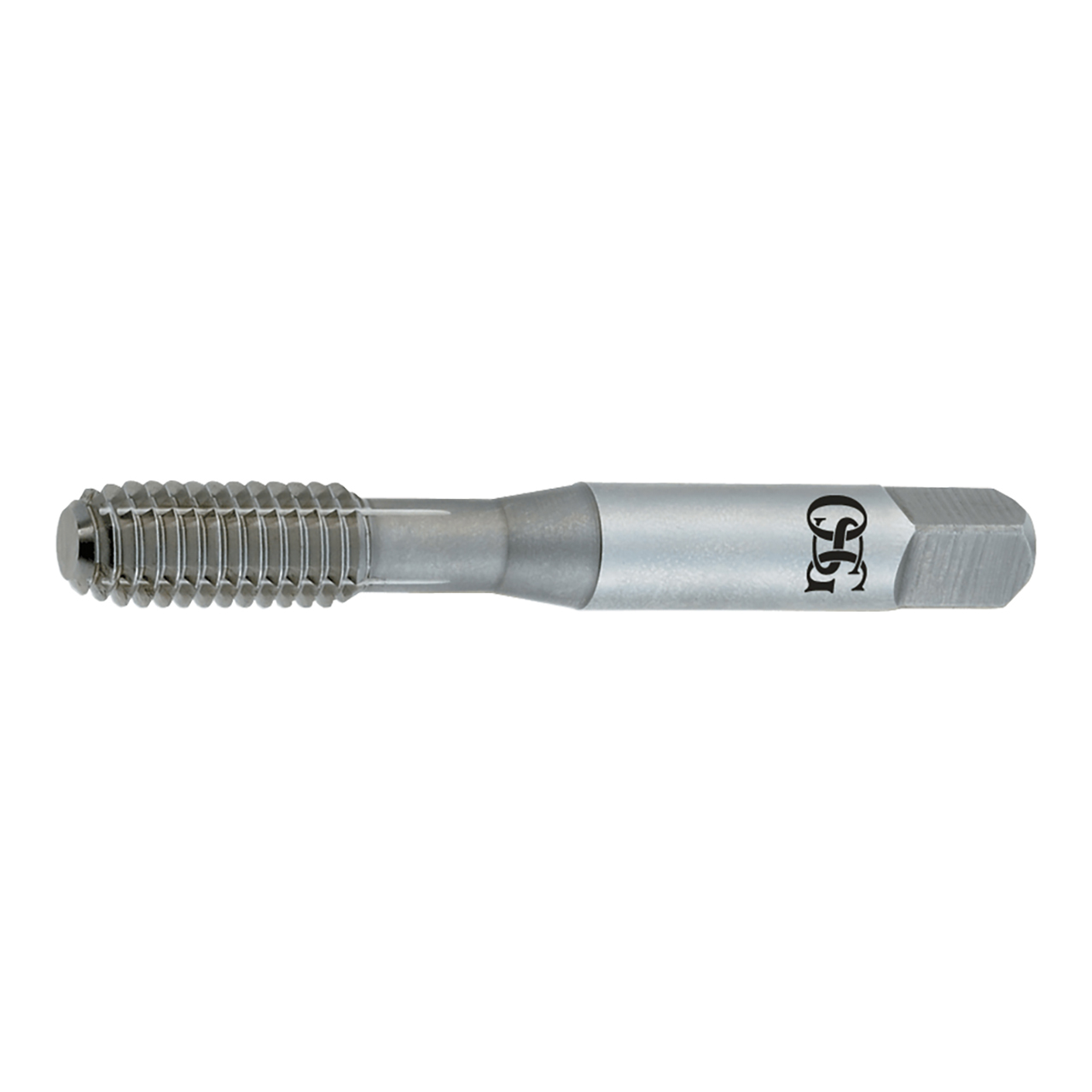

OSG 2868505 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 9.60mm Length x 62.00mm OAL Bottom (2.25P) Chamfer TiN Coated HSS 286 Thread Forming Tap

OSG 2868505 | HY-PRO TAP M M5.00x0.80mm Thread Size x 4.93mm Shank x 9.60mm Length x 62.00mm OAL Bottom (2.25P) Chamfer TiN Coated HSS 286 Thread Forming Tap

SKU: 18003804 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$37.05 $16.67
(You save $20.38)
Shipping: Calculated at Checkout

About This Item

Semi-premium taps made from premium high speed steel for general purpose tapping applications.

Features & Benefits:

  • 6H Class of Fit: Eliminates the need to choose the correct thread limit

Product Specifications
Manufacturer Part Number2868505
Chamfer Length (Decimal Inch)0.071"
Major Diameter (mm)5.00mm
Neck Length (mm)22.20mm
Overall Length (mm)62.00mm
Pitch (mm)0.80mm
Shank Diameter (mm)4.93mm
Square Length (mm)6.35mm
Square Width (mm)3.86mm
Maximum Tap Drill Size (mm)4.67mm
Minimum Tap Drill Size (mm)4.59mm
Thread Length (mm)9.60mm
Thread SizeM5
CoatingTiN
MaterialHSS
Series286 Series
Product TypeThread Forming Tap
