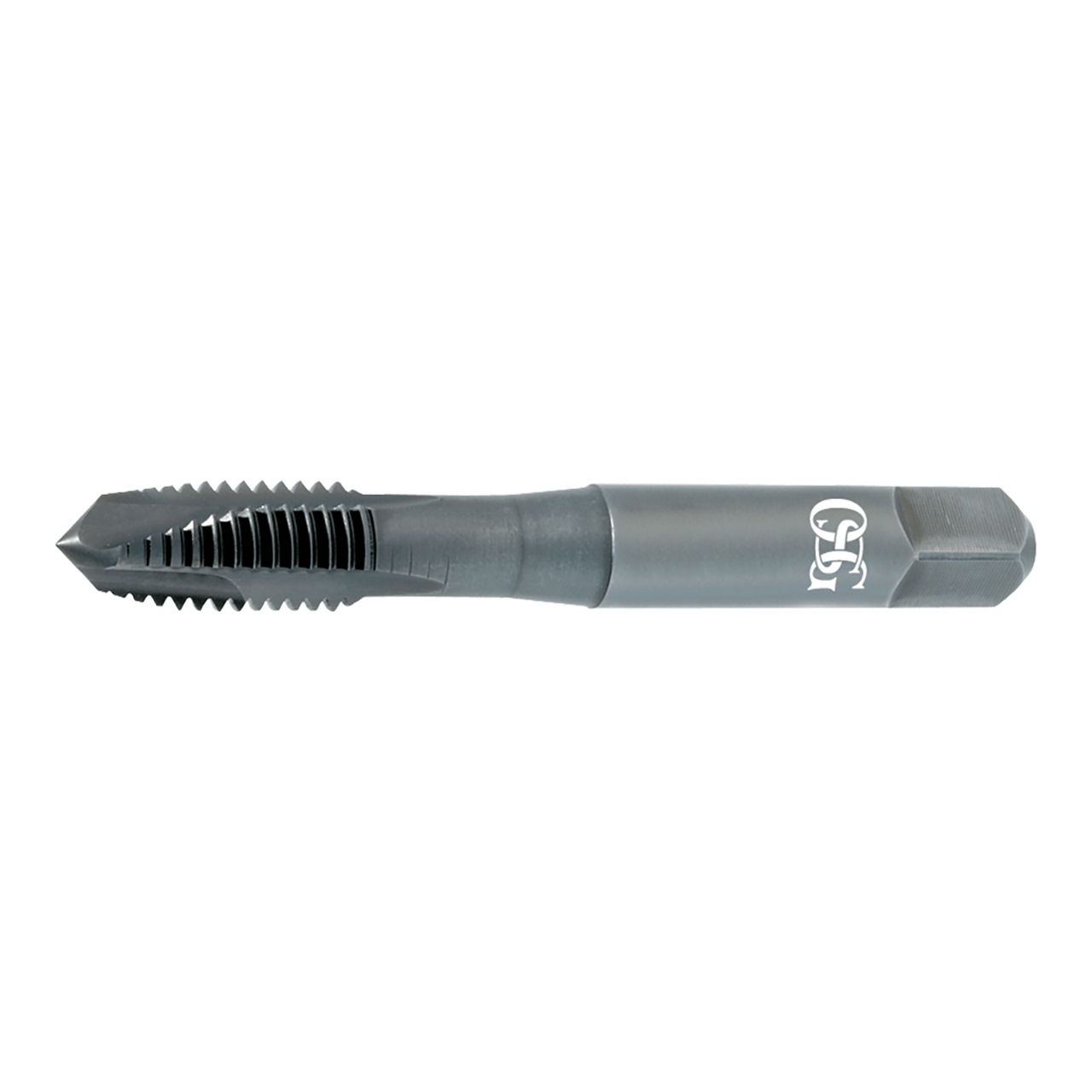

OSG 2895001 | HY-PRO TAP MF M30.00x1.50mm Thread Size x 25.93mm Shank x 38.10mm Length x 138.10mm OAL Plug (4P) Chamfer D6 4 Flute Steam Oxide Coated HSSE 289 Spiral Point Tap

OSG 2895001 | HY-PRO TAP MF M30.00x1.50mm Thread Size x 25.93mm Shank x 38.10mm Length x 138.10mm OAL Plug (4P) Chamfer D6 4 Flute Steam Oxide Coated HSSE 289 Spiral Point Tap

SKU: 18003987 Weight: 1.19 LBS Minimum Purchase: 1 unit
UPC:
$612.25 $373.47
(You save $238.78)
Shipping: Free Shipping

About This Item

HY-PRO DIN is the original "Do it All" premium spiral point tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2895001
Chamfer Length (Decimal Inch)0.236"
Chamfer TypePlug (4P)
Cutting DirectionRight Hand
List NamePOT
Major Diameter (mm)30.00mm
Neck Length (mm)54.10mm
Number of Flutes4
Overall Length (mm)138.10mm
Pitch (mm)1.50mm
Shank Diameter (mm)25.93mm
Square Length (mm)25.40mm
Square Width (mm)19.46mm
MaterialHSSE
CoatingSteam Oxide
Tap Drill Size Maximum (mm)28.68mm
Tap Drill Size Minimum (mm)28.38mm
Thread Length (mm)38.10mm
Thread LimitD6
Thread SizeM30
Thread TypeMF
Series289
Product TypeSpiral Point Tap
