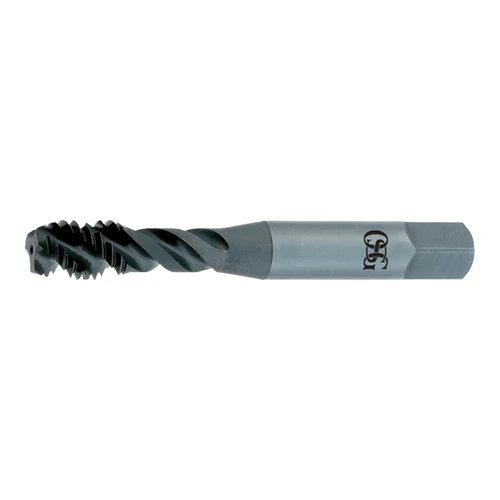

OSG 2932201 | HY-PRO TAP UNF 7/16" - 2 Thread Size x 0.323" Shank x 0.570" Length x 3.156" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Steam Oxide Coated HSSE 290 Spiral Flute Tap

OSG 2932201 | HY-PRO TAP UNF 7/16" - 2 Thread Size x 0.323" Shank x 0.570" Length x 3.156" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Steam Oxide Coated HSSE 290 Spiral Flute Tap

SKU: 15030490 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$79.70 $48.61
(You save $31.09)
Shipping: Calculated at Checkout

About This Item

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2932201
Chamfer Length (Decimal Inch)0.125"
Major Diameter (Decimal Inch)0.438"
Neck Length (Decimal Inch)1.712"
Number of Flutes3
Overall Length (Decimal Inch)3.156"
Shank Diameter (Decimal Inch)0.323"
Square Length (Decimal Inch)0.406"
Square Width (Decimal Inch)0.242"
Maximum Tap Drill Size (Decimal Inch)0.395"
Minimum Tap Drill Size (Decimal Inch)0.383"
Thread Length (Decimal Inch)0.570"
Thread Size (Inch)7/16"
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series290 Series
Product TypeSpiral Flute Tap
