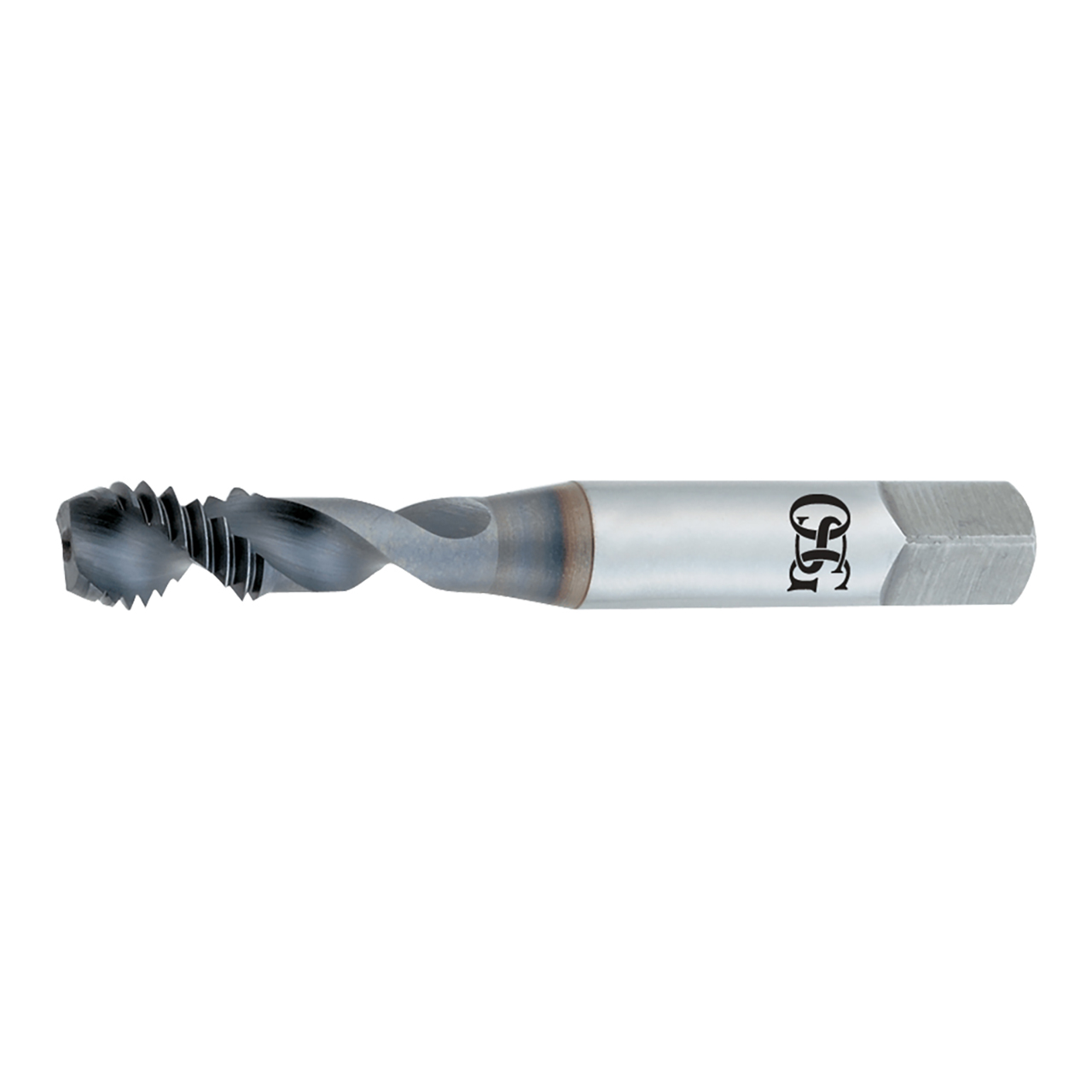

OSG 2964000 | HY-PRO TAP MF M10.00x1.25mm Thread Size x 9.68mm Shank x 11.98mm Length x 74.60mm OAL Modified Bottom (2P) Chamfer D5 2 Flute BRIGHT Coated HSSE 296 Spiral Flute Tap

OSG 2964000 | HY-PRO TAP MF M10.00x1.25mm Thread Size x 9.68mm Shank x 11.98mm Length x 74.60mm OAL Modified Bottom (2P) Chamfer D5 2 Flute BRIGHT Coated HSSE 296 Spiral Flute Tap

SKU: 18004256 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$74.65 $45.53
(You save $29.12)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Slow spiral: Efficient chip evacuation
  • Inch & Metric: Complete Offering

Product Specifications
Manufacturer Part Number2964000
Chamfer Length (Decimal Inch)0.098"
Chamfer TypeModified Bottom (2P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameAL-SFT
Major Diameter (mm)10.00mm
Neck Length (mm)31.80mm
Number of Flutes2
Overall Length (mm)74.60mm
Pitch (mm)1.25mm
Shank Diameter (mm)9.68mm
Square Length (mm)11.11mm
Square Width (mm)7.26mm
MaterialHSSE
CoatingBright
Tap Drill Size Maximum (mm)8.91mm
Tap Drill Size Minimum (mm)8.65mm
Thread Length (mm)11.98mm
Thread LimitD5
Thread SizeM10
Thread TypeMF
Series296
Product TypeSpiral Flute Tap
