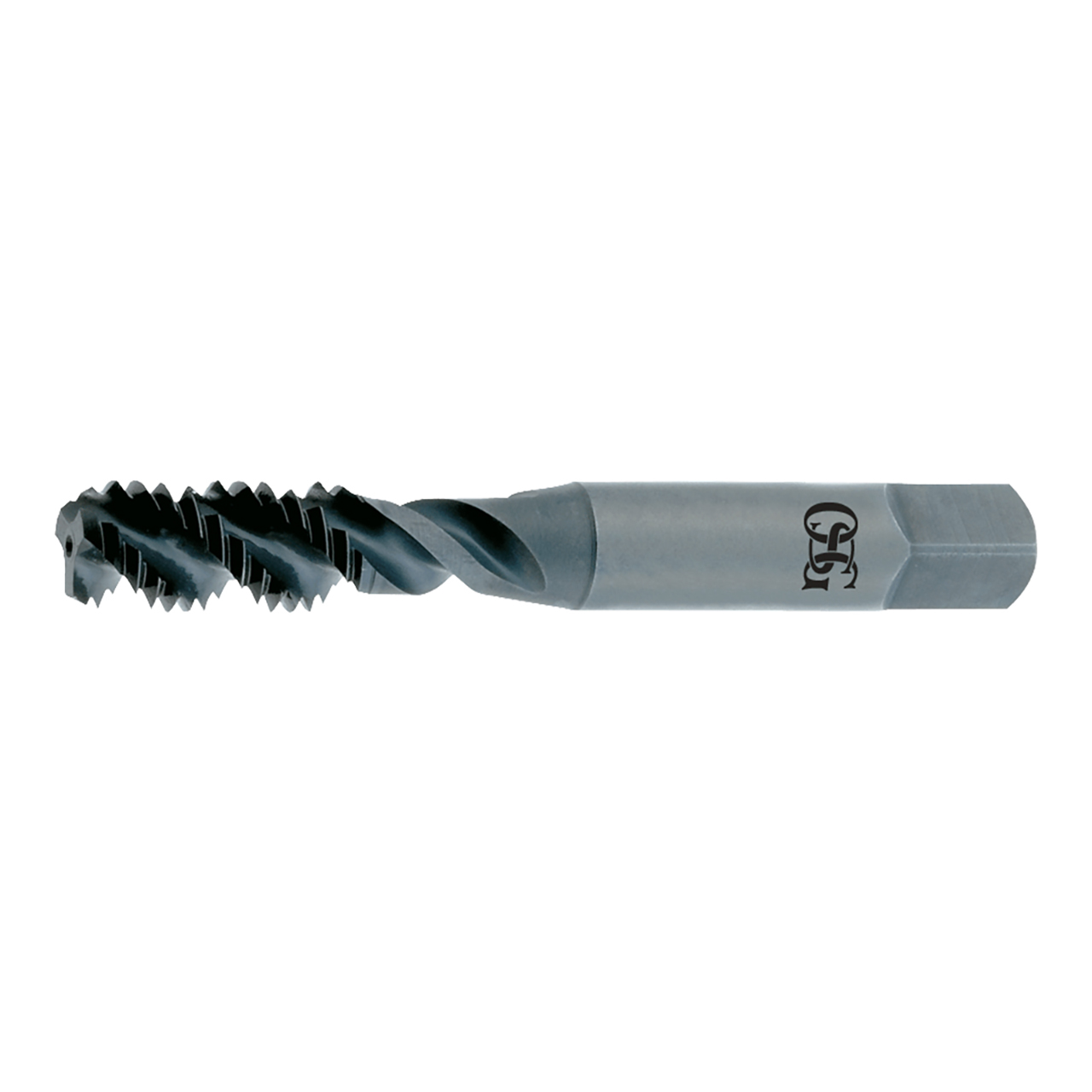

OSG 2984600 | HY-PRO TAP UNF #3 - 56 Thread Size x 0.141" Shank x 0.496" Length x 1.813" OAL Bottom (1.5P) Chamfer 2 Flute BRIGHT Coated HSS 297 Spiral Flute Tap

OSG 2984600 | HY-PRO TAP UNF #3 - 56 Thread Size x 0.141" Shank x 0.496" Length x 1.813" OAL Bottom (1.5P) Chamfer 2 Flute BRIGHT Coated HSS 297 Spiral Flute Tap

SKU: 18004261 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$31.83 $14.32
(You save $17.51)
Shipping: Calculated at Checkout

About This Item

HY-PRO SEVEN is a premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2984600
Chamfer Length (Decimal Inch)0.027"
Major Diameter (Decimal Inch)0.099"
Neck Length (Decimal Inch)0.535"
Number of Flutes2
Overall Length (Decimal Inch)1.813"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.087"
Minimum Tap Drill Size (Decimal Inch)0.080"
Thread Length (Decimal Inch)0.496"
Thread Size NumberNo. 3
CoatingBright
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series297 Series
Product TypeSpiral Flute Tap
