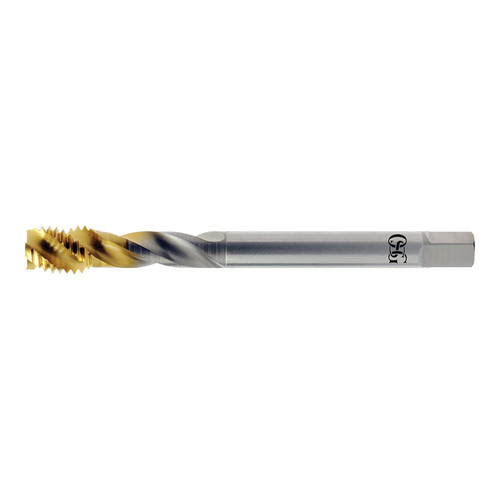

OSG 2993201 | HY-PRO TAP M M18.00x2.50mm Thread Size x 13.77mm Shank x 19.98mm Length x 102.40mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute Steam Oxide Coated HSSE 299 Spiral Flute Tap

OSG 2993201 | HY-PRO TAP M M18.00x2.50mm Thread Size x 13.77mm Shank x 19.98mm Length x 102.40mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute Steam Oxide Coated HSSE 299 Spiral Flute Tap

SKU: 18004353 Weight: 0.23 LBS Minimum Purchase: 1 unit
UPC:
$230.63 $140.68
(You save $89.95)
Shipping: Calculated at Checkout

About This Item

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2993201
Chamfer Length (Decimal Inch)0.246"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameSFT
Major Diameter (mm)18.00mm
Neck Length (mm)54.99mm
Number of Flutes4
Overall Length (mm)102.40mm
Pitch (mm)2.50mm
Shank Diameter (mm)13.77mm
Square Length (mm)15.88mm
Square Width (mm)10.31mm
MaterialHSSE
CoatingSteam Oxide
Tap Drill Size Maximum (mm)15.74mm
Tap Drill Size Minimum (mm)15.29mm
Thread Length (mm)19.98mm
Thread LimitD7
Thread SizeM18
Thread TypeM
Series299
Product TypeSpiral Flute Tap
