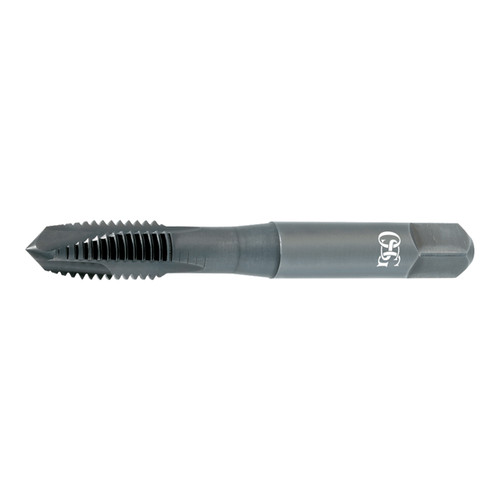

EXOTAP VA-3 is the premium solution for tapping helicoil (STI) threads in stainless steels.
Features & Benefits:
- HSSE material: Increased wear resistance
- Spiral Point: For through hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 30102801 |
| Chamfer Length (Decimal Inch) | 0.222" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | VA-3 POT STI |
| Major Diameter (Decimal Inch) | 0.563" |
| Neck Length (Decimal Inch) | 1.562" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.811" |
| Shank Diameter (Decimal Inch) | 0.480" |
| Square Length (Decimal Inch) | 0.563" |
| Square Width (Decimal Inch) | 0.360" |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (Decimal Inch) | 0.645" |
| Tap Drill Size Minimum (Decimal Inch) | 0.637" |
| Thread Length (Decimal Inch) | 1.090 " |
| Thread Limit | H3 |
| Thread Size (Inch) | 9/16" |
| Thread Type | UNF STI |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 301 |
| Product Type | Spiral Point STI Tap |
