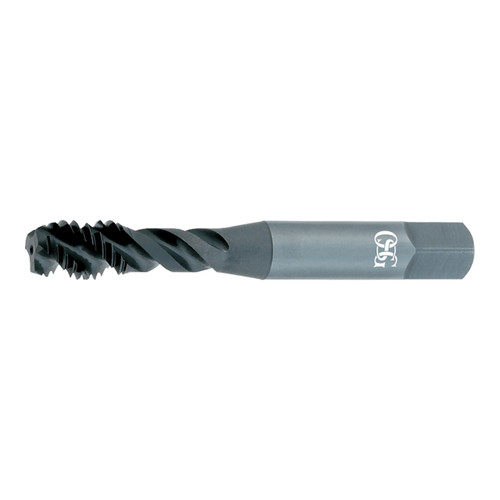

OSG 30200301 | EXO #6- 40 Thread Size x 0.168" Shank x 0.313" Thread Length x 2.130" OAL UNF STI H2 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSSE 302 Spiral Flute STI Tap

$39.19 $36.45
(You save $2.74)
SKU:
18004440
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 30200301 | EXO #6- 40 Thread Size x 0.168" Shank x 0.313" Thread Length x 2.130" OAL UNF STI H2 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSSE 302 Spiral Flute STI Tap

EXOTAP VA-3 is the premium solution for tapping helicoil (STI) threads in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number30200301
Chamfer Length (Decimal Inch)0.063"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 SFT STI
Major Diameter (Decimal Inch)0.138"
Neck Length (Decimal Inch)0.754"
Number of Flutes3
Overall Length (Decimal Inch)2.130"
Shank Diameter (Decimal Inch)0.168"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.131"
MaterialHSSE
CoatingSteam Oxide
Tap Drill Size Maximum (Decimal Inch)0.150"
Tap Drill Size Minimum (Decimal Inch)0.144"
Thread Length (Decimal Inch)0.313"
Thread LimitH2
Thread SizeNo. 6
Thread Size (Number)#6
Thread TypeUNF STI
Thread Per Inch (TPI)40 TPI
Series302
Product TypeSpiral Flute STI Tap
