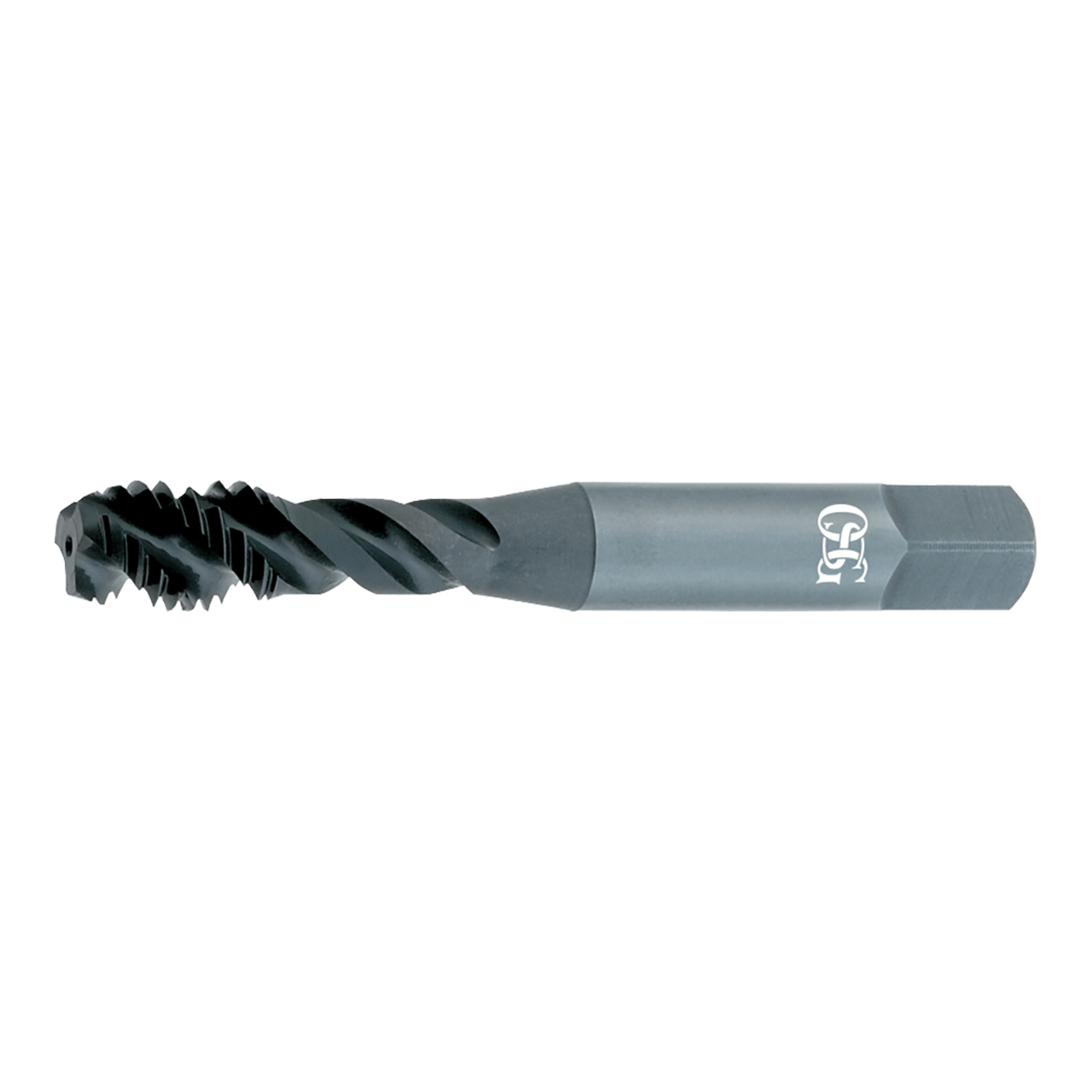

EXOTAP VA-3 is the premium solution for tapping helicoil (STI) threads in stainless steels.
Features & Benefits:
- HSSE material: Increased wear resistance
- Spiral Flute: For blind hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 30201808 |
| Chamfer Length (Decimal Inch) | 0.104" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | VA-3 SFT STI |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.713" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.161" |
| Shank Diameter (Decimal Inch) | 0.323" |
| Square Length (Decimal Inch) | 0.406" |
| Square Width (Decimal Inch) | 0.242" |
| Material | HSSE |
| Coating | V |
| Tap Drill Size Maximum (Decimal Inch) | 0.391" |
| Tap Drill Size Minimum (Decimal Inch) | 0.384" |
| Thread Length (Decimal Inch) | 0.626" |
| Thread Limit | H3 |
| Thread Size (Inch) | 3/8" |
| Thread Type | UNF STI |
| Thread Per Inch (TPI) | 24 TPI |
| Series | 302 |
| Product Type | Spiral Flute STI Tap |
