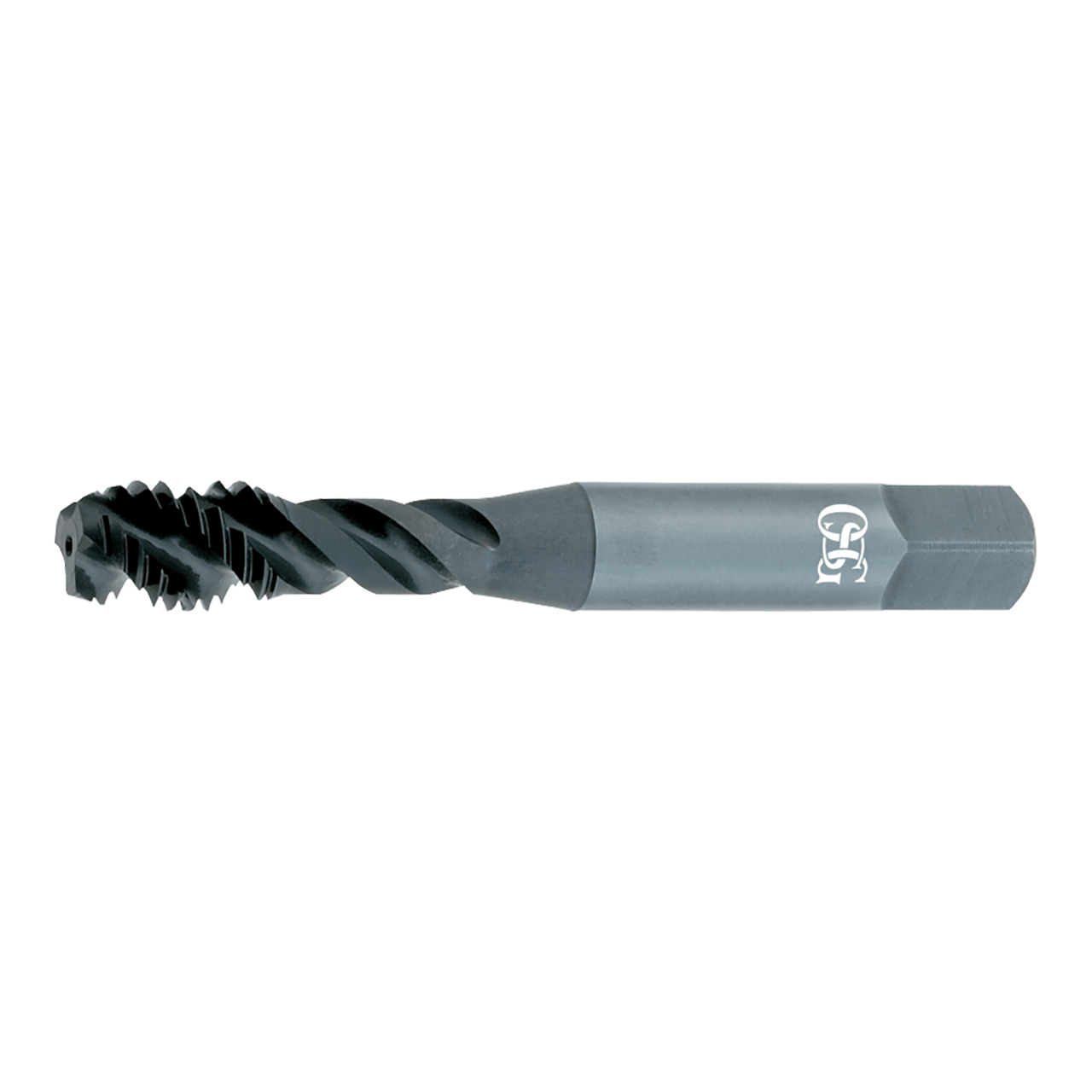

EXOTAP VA-3 is the premium solution for tapping helicoil (STI) threads in stainless steels.
Features & Benefits:
| Manufacturer Part Number | 30206608 |
| Chamfer Length (Decimal Inch) | 0.208" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | VA-3 SFT STI |
| Major Diameter (Decimal Inch) | 1.000" |
| Neck Length (Decimal Inch) | 3.075" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 5.441" |
| Shank Diameter (Decimal Inch) | 0.896" |
| Square Length (Decimal Inch) | 0.875" |
| Square Width (Decimal Inch) | 0.672" |
| Material | HSSE |
| Coating | V |
| Tap Drill Size Maximum (Decimal Inch) | 1.028" |
| Tap Drill Size Minimum (Decimal Inch) | 1.018" |
| Thread Length (Decimal Inch) | 1.252" |
| Thread Limit | h4 |
| Thread Size (Inch) | 1" |
| Thread Type | UNF STI |
| Thread Per Inch (TPI) | 12 TPI |
| Series | 302 |
| Product Type | Spiral Flute STI Tap |
