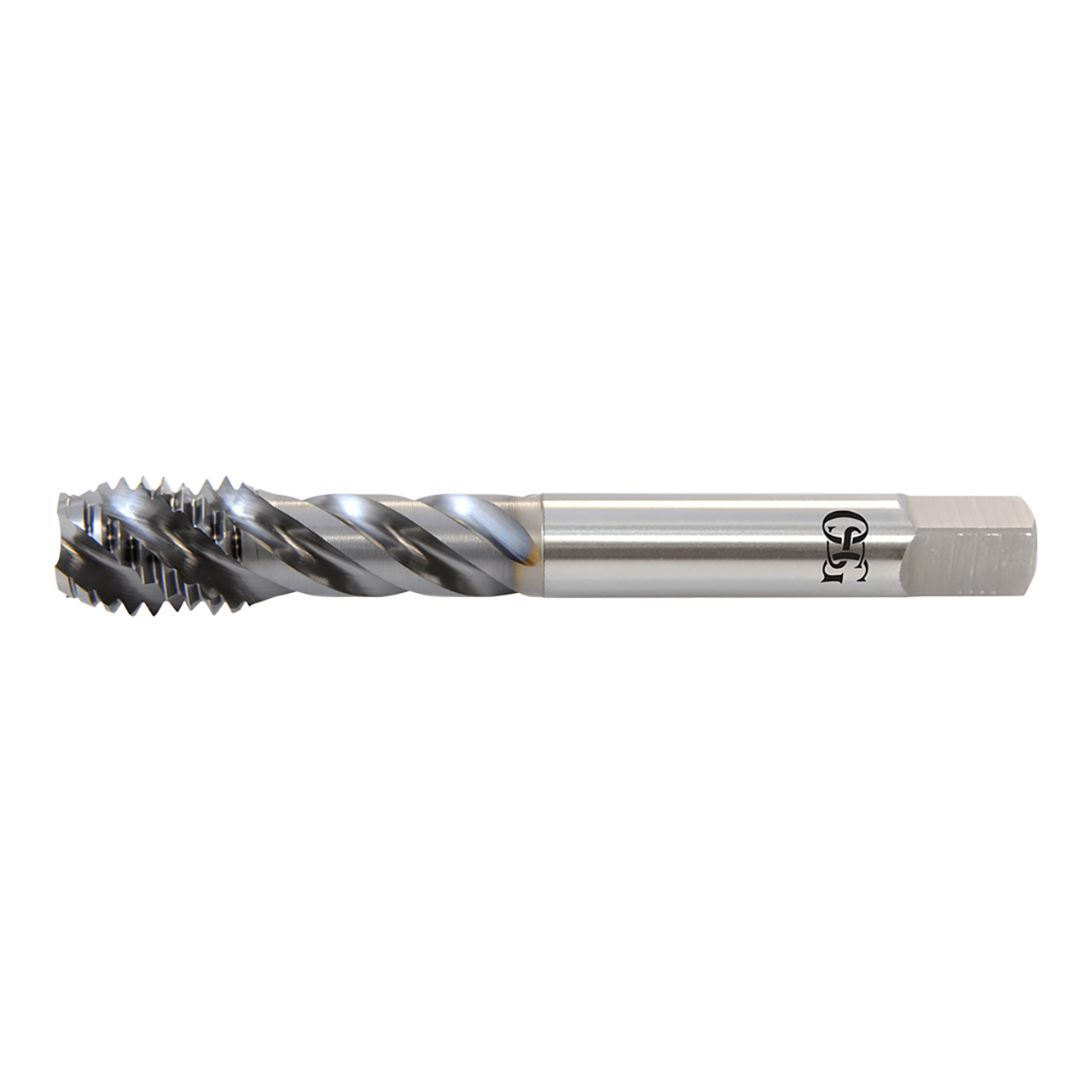

OSG 30704608 | EXOTAP UNC 3/4" - 1 Thread Size x 0.590" Shank x 0.799" Length x 4.921" OAL Modified Bottom (2.5P) Chamfer H5 4 Flute V Coated HSSE 307 Spiral Flute Tap

OSG 30704608 | EXOTAP UNC 3/4" - 1 Thread Size x 0.590" Shank x 0.799" Length x 4.921" OAL Modified Bottom (2.5P) Chamfer H5 4 Flute V Coated HSSE 307 Spiral Flute Tap

SKU: 18004624 Weight: 0.32 LBS Minimum Purchase: 1 unit
UPC:
$269.14 $250.30
(You save $18.84)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number30704608
Chamfer Length (Decimal Inch)0.250"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 OIL-V-SFT
Major Diameter (Decimal Inch)0.750"
Neck Length (Decimal Inch)2.433"
Number of Flutes4
Overall Length (Decimal Inch)4.921"
Shank Diameter (Decimal Inch)0.590"
Square Length (Decimal Inch)0.688"
Square Width (Decimal Inch)0.442"
MaterialHSSE
CoatingV
Tap Drill Size Maximum (Decimal Inch)0.663"
Tap Drill Size Minimum (Decimal Inch)0.642"
Thread Length (Decimal Inch)0.799"
Thread LimitH5
Thread Size (Inch)3/4"
Thread TypeUNC
Thread Per Inch (TPI)10 TPI
Series307
Product TypeSpiral Flute Tap
