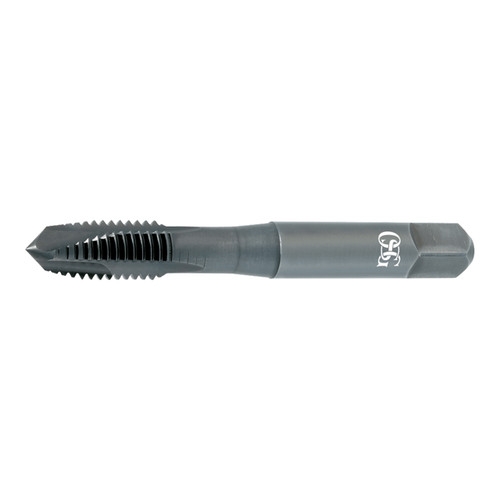

EXOTAP VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Point: For through hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 31400501 |
| Chamfer Length (Decimal Inch) | 0.208" |
| Chamfer Type | Plug (5P) |
| Cutting Direction | Right Hand |
| List Name | VC-10 POT STI |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 1.106" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.255" |
| Square Length (Decimal Inch) | 0.313" |
| Square Width (Decimal Inch) | 0.191" |
| Material | VC-10 |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (Decimal Inch) | 0.200" |
| Tap Drill Size Minimum (Decimal Inch) | 0.199" |
| Thread Length (Decimal Inch) | 0.688" |
| Thread Limit | H2 |
| Thread Size | No. 10 |
| Thread Size (Number) | #10 |
| Thread Type | UNC STI |
| Thread Per Inch (TPI) | 24 TPI |
| Series | 314 |
| Product Type | Spiral Point STI Tap |
