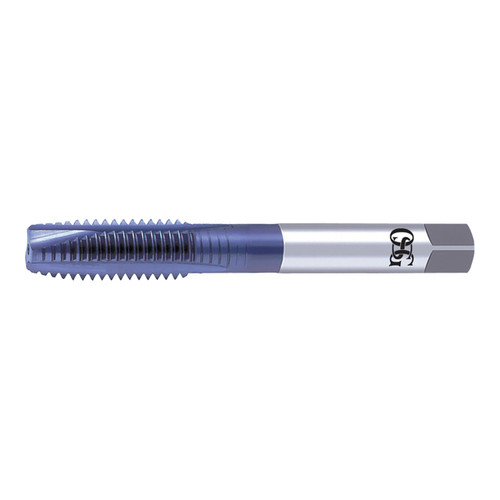

OSG 31440308 | EXOTAP UNC STI #6 - 32 Thread Size x 0.194" Shank x 0.874" Length x 2.382" OAL Plug (4P) Chamfer H3 3 Flute V Coated VC-10 314Ti Spiral Flute STI Tap

OSG 31440308 | EXOTAP UNC STI #6 - 32 Thread Size x 0.194" Shank x 0.874" Length x 2.382" OAL Plug (4P) Chamfer H3 3 Flute V Coated VC-10 314Ti Spiral Flute STI Tap

SKU: 18004936 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$40.89 $38.02
(You save $2.87)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number31440308
Chamfer Length (Decimal Inch)0.125"
Major Diameter (Decimal Inch)0.138"
Neck Length (Decimal Inch)1.071"
Number of Flutes3
Overall Length (Decimal Inch)2.382"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
Maximum Tap Drill Size (Decimal Inch)0.153"
Minimum Tap Drill Size (Decimal Inch)0.145"
Thread Length (Decimal Inch)0.874"
Thread Size NumberNo. 6
CoatingV
MaterialVC-10
Series314Ti Series
Product TypeSpiral Flute STI Tap
