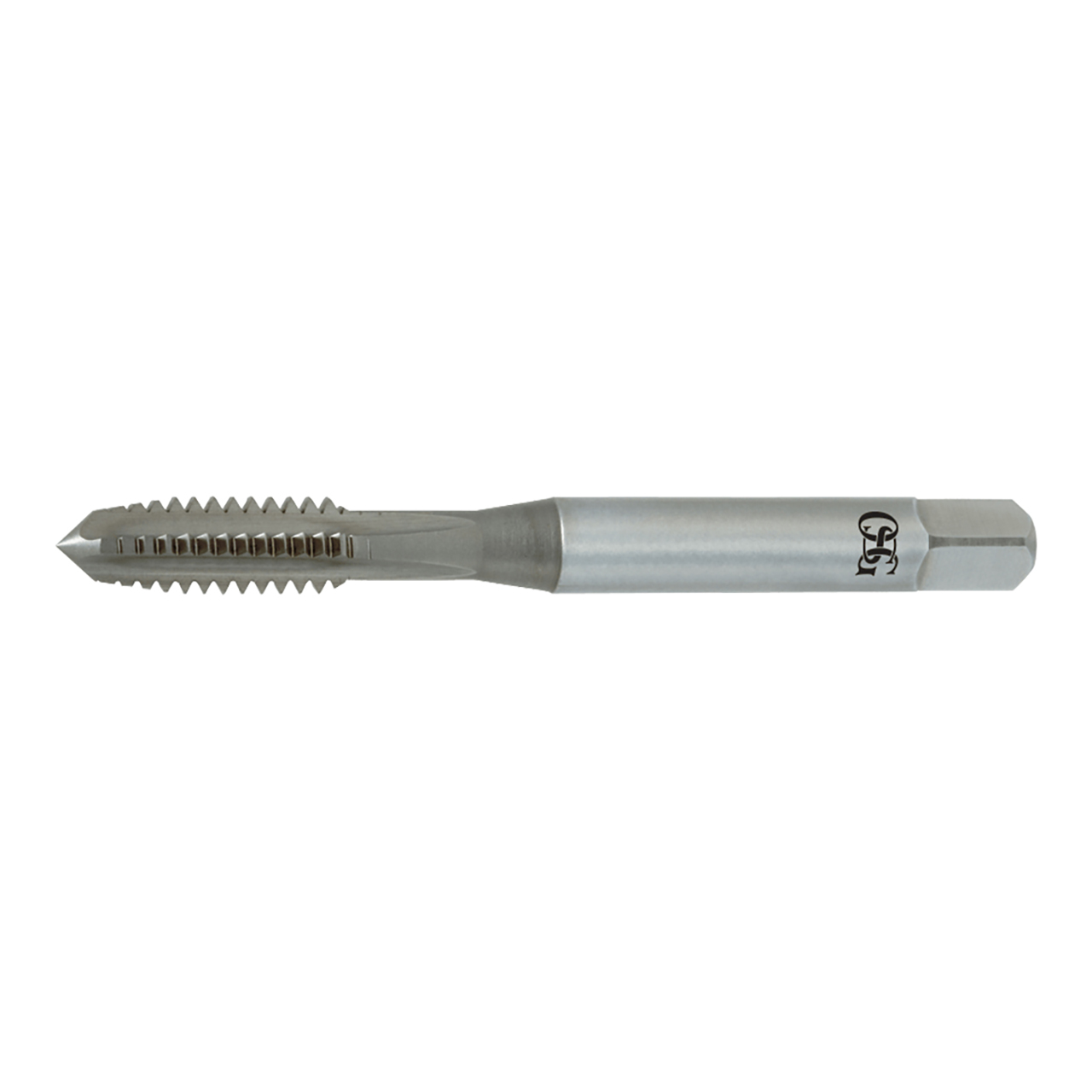

TAPS FOR PLASTIC Straight Flute Hand Taps for Plastics
| Manufacturer Part Number | 3146903 |
| Chamfer Length (Decimal Inch) | 0.063" |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 0.866" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.374" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.152" |
| Maximum Tap Drill Size (Decimal Inch) | 0.156" |
| Minimum Tap Drill Size (Decimal Inch) | 0.145" |
| Thread Length (Decimal Inch) | 0.492" |
| Thread Size Number | No. 10 |
| Coating | Nitride |
| Material | HSS-CO |
| Series | 114 Series |
| Product Type | Straight Flute Tap |
