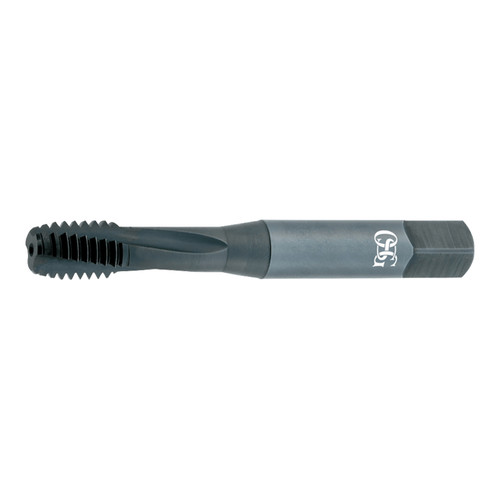

EXOTAP VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Flute: For blind hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 31504208 |
| Chamfer Length (Decimal Inch) | 0.208" |
| Major Diameter (Decimal Inch) | 1.000" |
| Neck Length (Decimal Inch) | 3.114" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 5.437" |
| Shank Diameter (Decimal Inch) | 0.896" |
| Square Length (Decimal Inch) | 0.875" |
| Square Width (Decimal Inch) | 0.672" |
| Maximum Tap Drill Size (Decimal Inch) | 1.028" |
| Minimum Tap Drill Size (Decimal Inch) | 1.018" |
| Thread Length (Decimal Inch) | 1.251" |
| Thread Size (Inch) | 1" |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Series | 315 Series |
| Product Type | Spiral Flute STI Tap |
