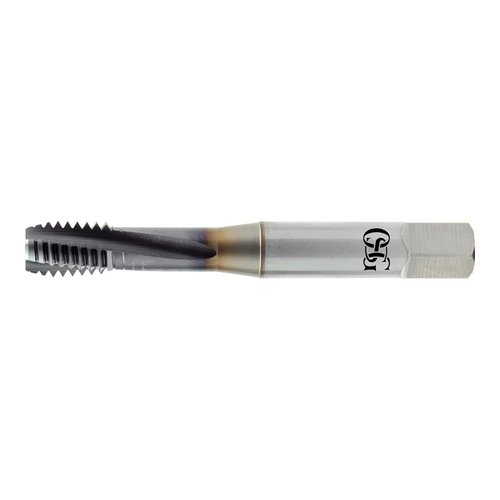

EXOTAP VC-10 NI STI Taps STI High Performance Spiral Flute Tap for Nickel Alloys.
| Manufacturer Part Number | 31520308 |
| Chamfer Length (Decimal Inch) | 0.078" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 10 Degree |
| Helix Direction | Right Hand |
| List Name | VC-10 V-HL-Ni-SFT STI |
| Major Diameter (Decimal Inch) | 0.138" |
| Neck Length (Decimal Inch) | 1.669" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.380" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.152" |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (Decimal Inch) | 0.153" |
| Tap Drill Size Minimum (Decimal Inch) | 0.145" |
| Thread Length (Decimal Inch) | 0.870 " |
| Thread Limit | H3 |
| Thread Size | No. 6 |
| Thread Size (Number) | #6 |
| Thread Type | UNC STI |
| Thread Per Inch (TPI) | 32 TPI |
| Series | 315Ni |
| Product Type | Spiral Flute STI Tap |
