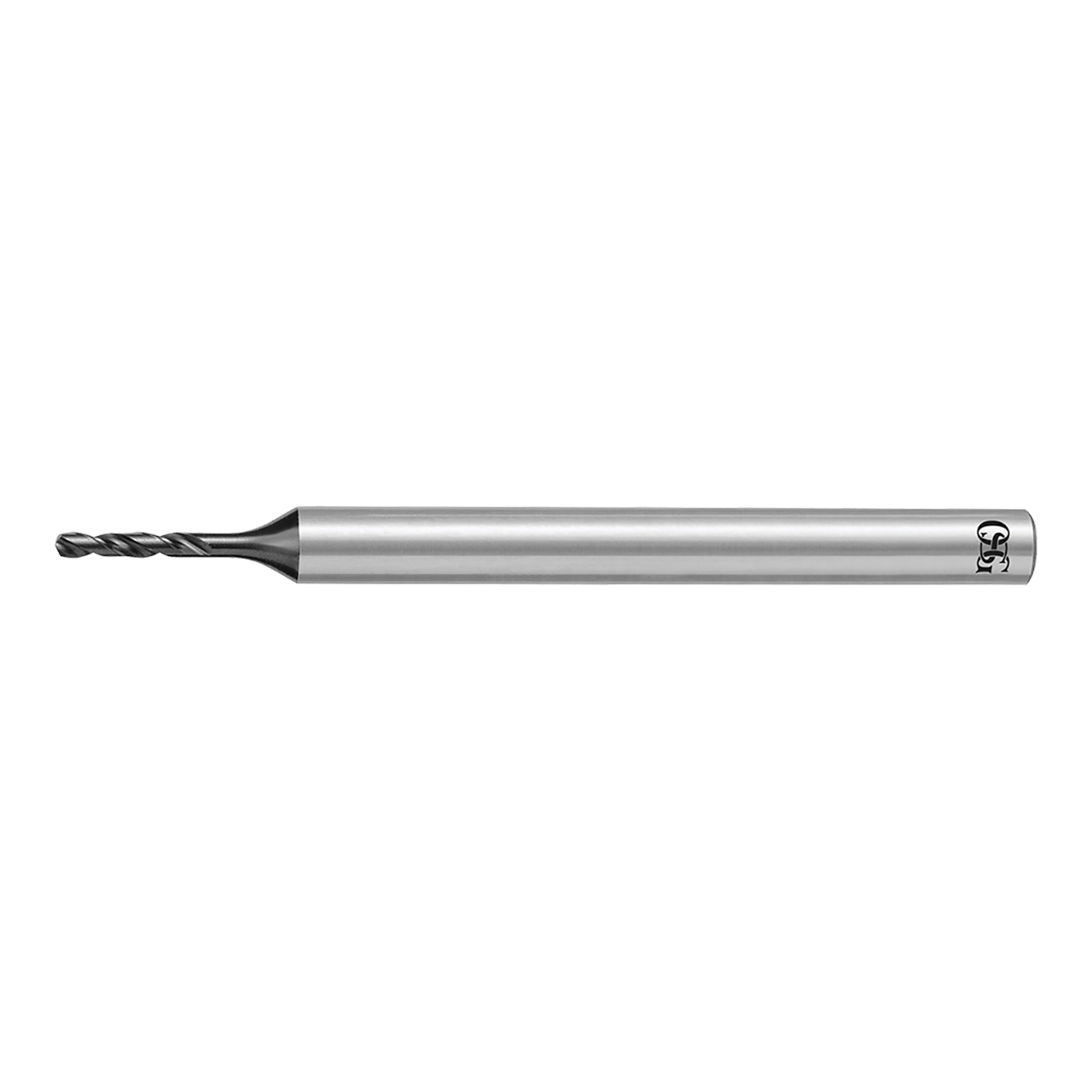

OSG 3300151 | EXOCARB 1.51mm Drill Size x 3.00mm Shank x 1.00mm Flute Length x 42.00mm OAL x 140 Degree Point Angle 2 Flute TiAlN Coated Carbide 5330 Micro Drill Bit

SKU: 10292031 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$47.52 $45.14
(You save $2.38)
Shipping: Calculated at Checkout

About This Item

The EXOCARB MAX-MINI WX-MS series is the ultra-premium solution for processing micro-sized holes from 0.2mm through 5.0mm in difficult to machine materials. Made of sub-micrograin carbide, this drill features a unique flute designed for both rigidity and wide chip room.

Features & Benefits:

  • Tungsten Carbide: Improves wear resistance for long tool life
  • TiALN coating: Greater resistance to heat and wear
  • Available in a wide range of micro mm sizes: When precision matters

Product Specifications
Manufacturer Part Number3300151
Diameter (Decimal Inch)0.059"
Diameter (mm)1.51mm
Flute Length (mm)10.00mm
Number of Flutes2
Overall Length (mm)42.00mm
Shank Diameter (mm)3.00mm
CoatingTiAlN
MaterialCarbide
Helix DirectionRight Hand
Helix Angle (Degree)30 Degree
Point Angle (Degree)140 Degree
Series5330 Series
Product TypeMicro Drill Bit
