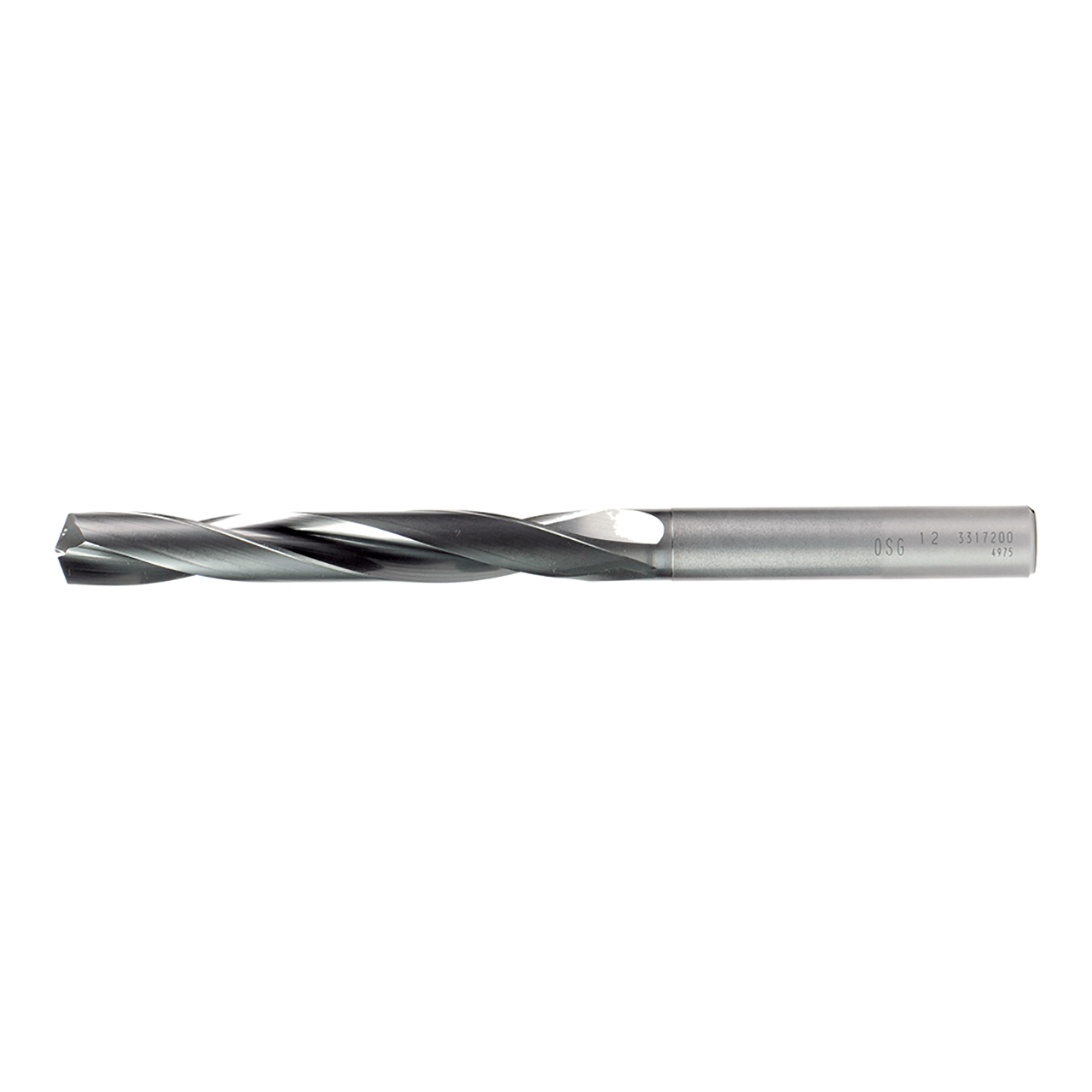

OSG 3316349 | EXOPRO 0.137" Diameter x 6.00mm Shank x 32.00mm Flute Length x 78.00mm OAL x 140 Degree Point Angle 2 Flute DUROREY Coated Carbide 5955NI Jobber Length Drill Bit

$173.30 $116.11
(You save $57.19)
Brand:
OSG
Coolant Through:
Yes
Cutting Direction:
Right Hand
Material:
Carbide
Finish/Coating:
DUROREY
interval quantity:
1
SKU:
10292143
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 3316349 | EXOPRO 0.137" Diameter x 6.00mm Shank x 32.00mm Flute Length x 78.00mm OAL x 140 Degree Point Angle 2 Flute DUROREY Coated Carbide 5955NI Jobber Length Drill Bit

The EXOPRO WHO-Ni drill series is OSG's premium performance drilling line for processing Ni-Alloys and Heat Resistant Super Alloys like Inconel 718. This latest innovation from OSG features our own proprietary WXS nano-coating, which has been developed by OSG specifically for high heat applications. Lower helix angles increase point rigidity while internal coolant holes further aid in heat resistance and stable chip evacuation in holes up to 5X diameter.

Features & Benefits:

  • OSG's WXS Nano Coating Technology: Higher coating oxidation temp & hardness dramatically improve wear resistance in high hardened and high heat materials.
  • Lower helix angle: Lower helix angles create stronger cutting faces, essential when cutting Ni-Alloys and hardened steels.
  • Internal coolant holes: Coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds.

Product Specifications
Manufacturer Part Number3316349
Coolant ThroughYes
Cutting Diameter Tolerance (Decimal Inch)+0 / -0.0007"
Cutting Diameter Tolerance (mm)+0 / -0.018mm
Cutting Diameter Tolerance Specificationh8
Cutting DirectionRight Hand
Diameter (Decimal Inch)0.137"
Diameter (mm)3.49mm
Flute Length (mm)32.00mm
Helix Angle (Degree)12 to 20 Degree
Helix DirectionRight Hand
List NameWHO-NI-5D
Number of Flutes2
Overall Length (mm)78.00mm
Point Angle (Degree)140 Degree
Shank Diameter (mm)6.00mm
Shank Toleranceh6
MaterialCarbide
CoatingDUROREY
Series5955NI
Product TypeJobber Length Drill Bit
