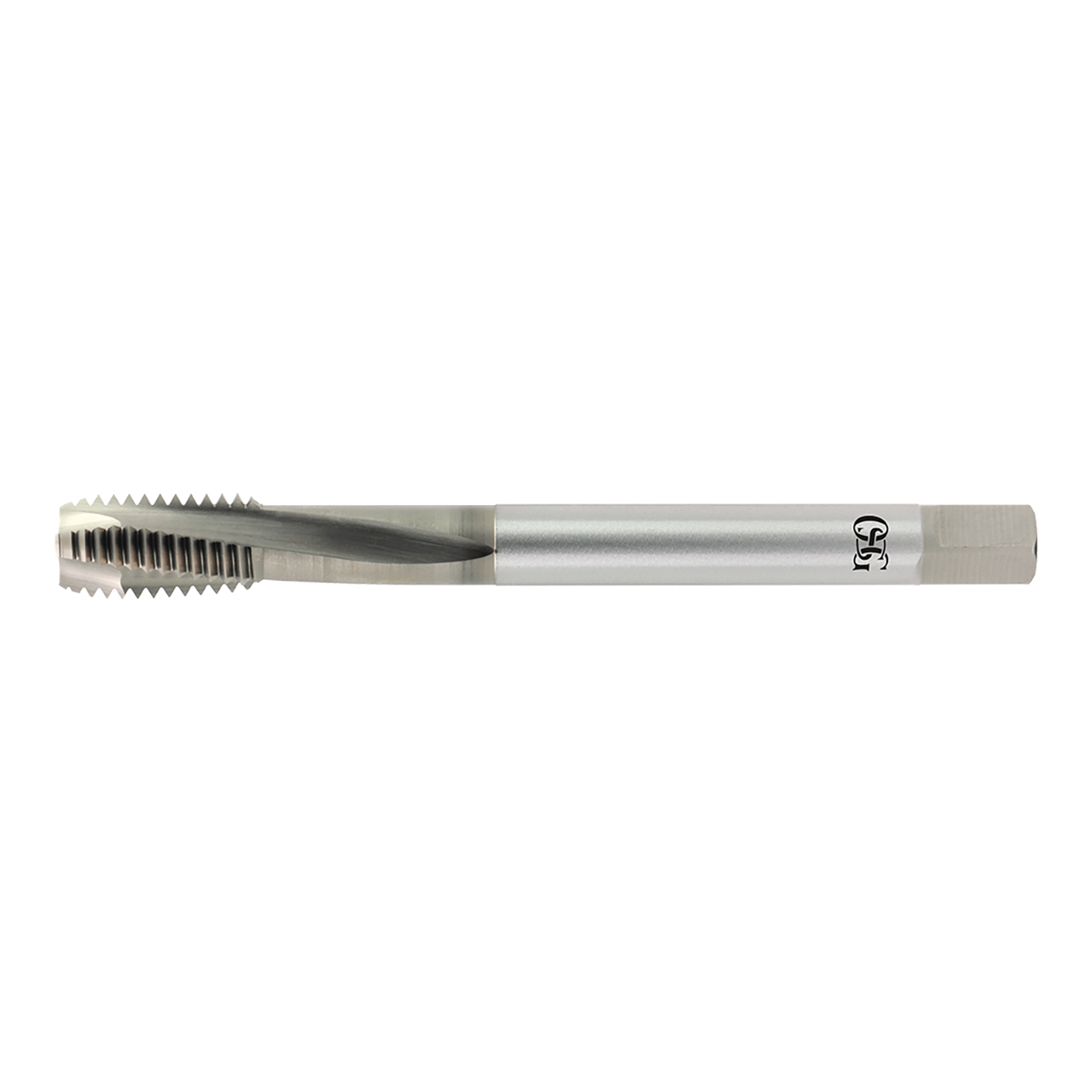

The EXOPRO-WHR-Ni spiral flute series is one of OSG’s latest innovations for nickel-based alloy applications. The EXOPRO-WHR-Ni series features a new point flute design to improve cutting edge rigidity, which helps prevent chipping and enables it to excel even in blind holes. With the addition of OSG’s patented HR coating, wear resistance and tool life can be substantially prolonged versus the competition.
Features & Benefits:
- New point flute geometry: Enables effective machining even in blind holes.
- Unique rake angle: Improves cutting edge rigidity to prevent edge chipping.
- OSG’s patented HR coating: Improves wear resistance to prolong tool life.
Product Specifications
| Manufacturer Part Number | 3360014207 |
| Chamfer Length (Decimal Inch) | 0.197" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 11 Degree |
| Helix Direction | Right Hand |
| List Name | WHR-Ni-SFT |
| Major Diameter (mm) | 14.00mm |
| Neck Length (mm) | 50.10mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 110.00mm |
| Pitch (mm) | 2.00mm |
| Shank Diameter (mm) | 10.90mm |
| Square Length (mm) | 12.70mm |
| Square Width (mm) | 8.18mm |
| Material | VC-10 |
| Coating | HR |
| Tap Drill Size Maximum (mm) | 12.21mm |
| Tap Drill Size Minimum (mm) | 11.84mm |
| Thread Length (mm) | 24.00mm |
| Thread Limit | D7 |
| Thread Size | M14 |
| Thread Type | M |
| Series | 336NI |
| Product Type | Spiral Flute Tap |
