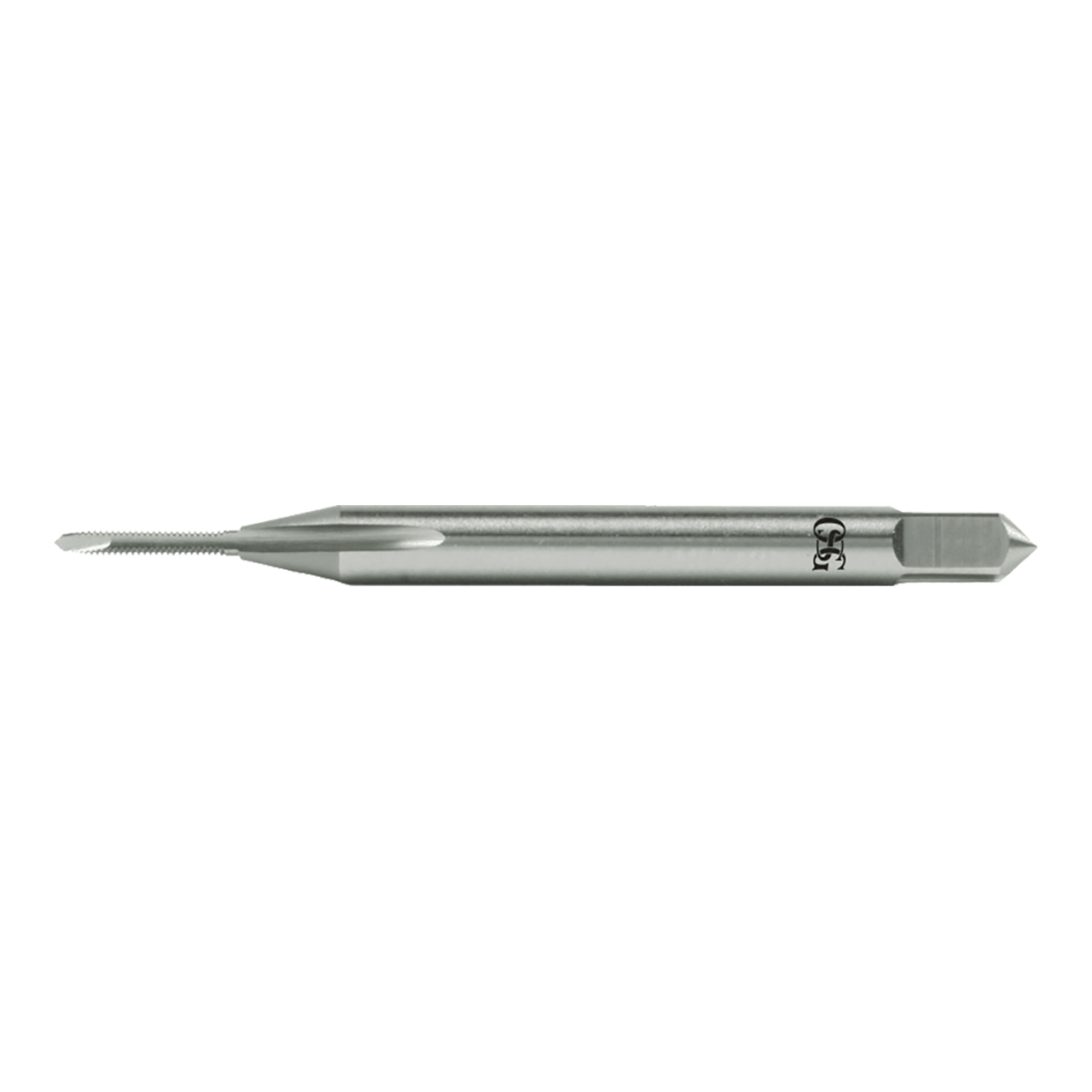

Name: OSG 3370000 | #0- 90 Thread Size x 0.141" Shank x 0.280" Thread Length x 1.728" OAL NS H2 Plug (4P) Chamfer Type 2 Flute Right Hand Bright Coated HSS S110 Straight Flute Tap
Brand: OSG
SKU: 18005351
Price: 27.86 USD
Availability: InStock

OSG 3370000 | #0- 90 Thread Size x 0.141" Shank x 0.280" Thread Length x 1.728" OAL NS H2 Plug (4P) Chamfer Type 2 Flute Right Hand Bright Coated HSS S110 Straight Flute Tap

$61.90 $27.86

(You save $34.04)

Brand:

OSG

Overall Length (Decimal Inch):

1.7280"

Number of Flutes:

Material:

HSS

Finish/Coating:

Bright

interval quantity:

SKU:

18005351

UPC:

Weight:

0.01 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

OSG General Purpose straight flute miniature taps for ferrous and non-ferrous materials. An exceptional value for general threading applications.

Features & Benefits:

HSS material: Increased wear resistance
Spiral Point: For through hole applications

Product Specifications

Manufacturer Part Number	3370000
Chamfer Length (Decimal Inch)	0.044"
Major Diameter (Decimal Inch)	0.047"
Neck Length (Decimal Inch)	0.339"
Number of Flutes	2
Overall Length (Decimal Inch)	1.728"
Shank Diameter (Decimal Inch)	0.141"
Square Length (Decimal Inch)	0.188"
Square Width (Decimal Inch)	0.110"
Maximum Tap Drill Size (Decimal Inch)	0.040"
Minimum Tap Drill Size (Decimal Inch)	0.037"
Thread Length (Decimal Inch)	0.280"
Coating	Bright
Material	HSS
Series	S110 Series
Thread Size	1.728"
Product Type	Straight Flute Tap
