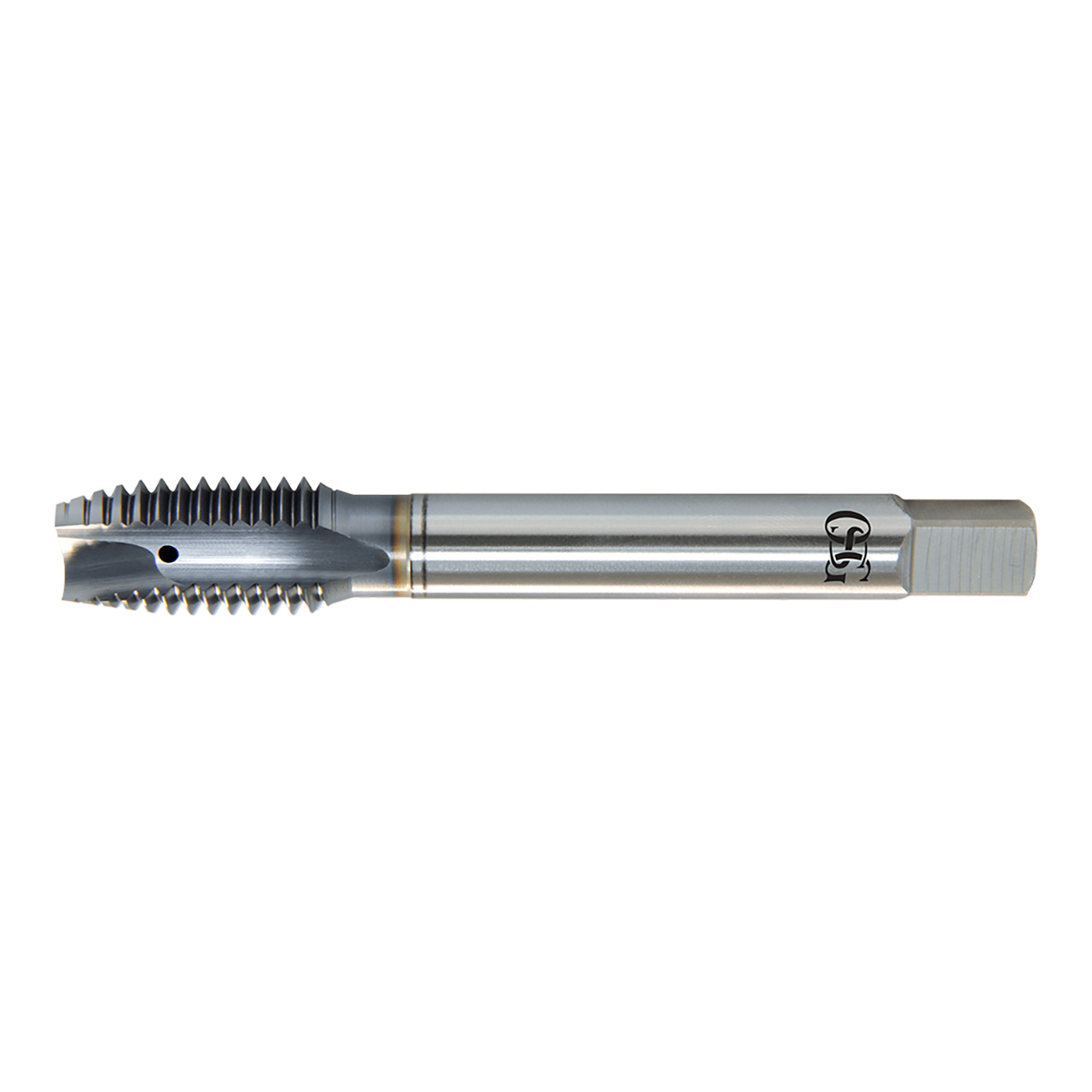

OSG 34600508 | EXO M6 x 1.00mm Thread Size x 6.48mm Shank x 12.00mm Thread Length M D5 Plug (4P) Chamfer Type 3 Flute Right Hand V Coated HSSE 346 Spiral Point Tap

$55.91 $52.00
(You save $3.91)
Brand:
OSG
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
V
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18005427
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 34600508 | EXO M6 x 1.00mm Thread Size x 6.48mm Shank x 12.00mm Thread Length M D5 Plug (4P) Chamfer Type 3 Flute Right Hand V Coated HSSE 346 Spiral Point Tap

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number34600508
Chamfer Length (Decimal Inch)0.157"
Major Diameter (mm)6.00mm
Neck Length (mm)30.00mm
Number of Flutes3
Overall Length (mm)80.00mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
Maximum Tap Drill Size (mm)5.15mm
Minimum Tap Drill Size (mm)4.92mm
Thread Length (mm)12.00mm
Thread SizeM6
CoatingV
MaterialHSSE
Series346 Series
Product TypeSpiral Point Tap
