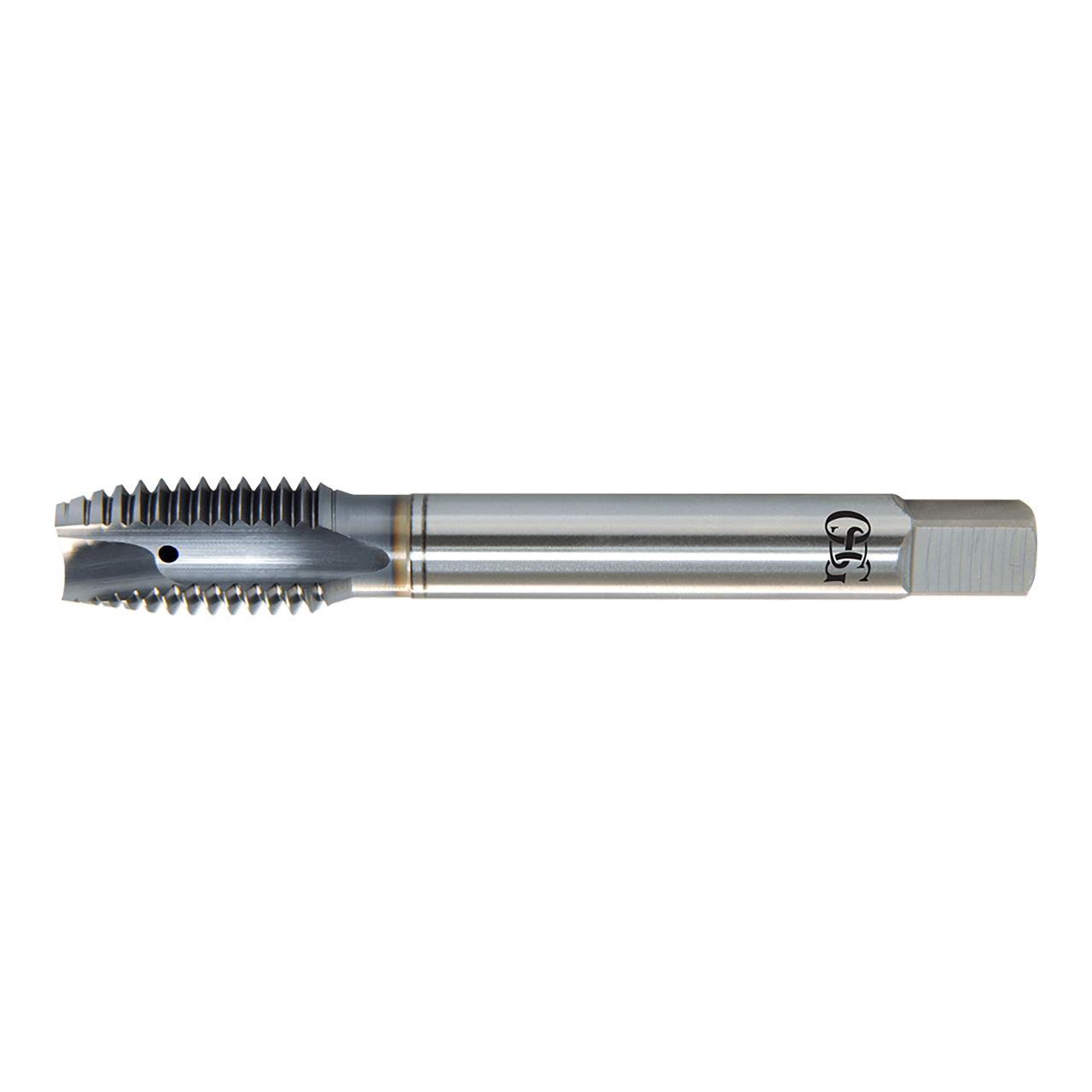

OSG 34602008 | EXOTAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 3.00mm Length x 14.00mm OAL Plug (4P) Chamfer D7 3 Flute V Coated HSSE 346 Spiral Point Tap

OSG 34602008 | EXOTAP M M20.00x2.50mm Thread Size x 16.56mm Shank x 3.00mm Length x 14.00mm OAL Plug (4P) Chamfer D7 3 Flute V Coated HSSE 346 Spiral Point Tap

SKU: 18005442 Weight: 0.48 LBS Minimum Purchase: 1 unit
UPC:
$266.68 $248.02
(You save $18.66)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number34602008
Chamfer Length (Decimal Inch)0.394"
Major Diameter (mm)20.00mm
Neck Length (mm)44.00mm
Number of Flutes3
Overall Length (mm)140.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)16.56mm
Square Length (mm)17.46mm
Square Width (mm)12.42mm
Maximum Tap Drill Size (mm)17.74mm
Minimum Tap Drill Size (mm)17.29mm
Thread Length (mm)30.00mm
Thread SizeM20
CoatingV
MaterialHSSE
Series346 Series
Product TypeSpiral Point Tap
