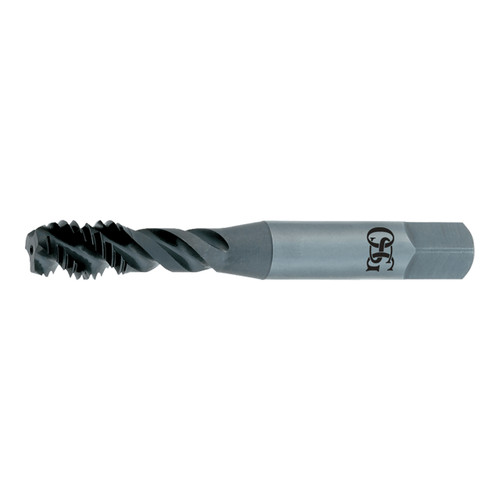

OSG 34700508 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 8.00mm Length x 8.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated HSSE 347 Spiral Flute Tap

OSG 34700508 | EXOTAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 8.00mm Length x 8.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated HSSE 347 Spiral Flute Tap

SKU: 18005447 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$62.10 $57.75
(You save $4.35)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number34700508
Chamfer Length (Decimal Inch)0.098"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 OIL-V-SFT
Major Diameter (mm)6.00mm
Neck Length (mm)30.00mm
Number of Flutes3
Overall Length (mm)80.00mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)5.15mm
Tap Drill Size Minimum (mm)4.92mm
Thread Length (mm)8.00mm
Thread LimitD5
Thread SizeM6
Thread TypeM
Series347
Product TypeSpiral Flute Tap
