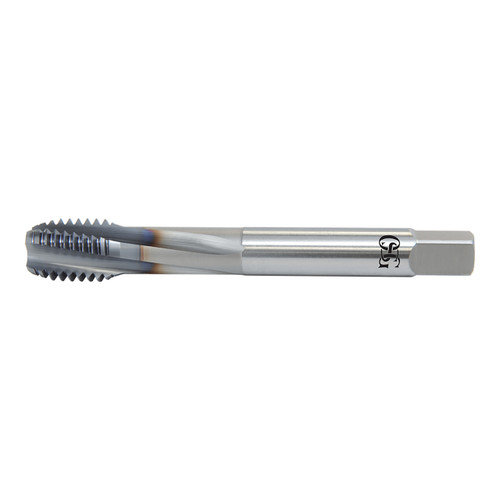

OSG 34701908 | EXOTAP MF M20.00x1.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 125.00mm OAL Modified Bottom (2.5P) Chamfer D6 4 Flute V Coated HSSE 347 Spiral Flute Tap

OSG 34701908 | EXOTAP MF M20.00x1.50mm Thread Size x 16.56mm Shank x 2.00mm Length x 125.00mm OAL Modified Bottom (2.5P) Chamfer D6 4 Flute V Coated HSSE 347 Spiral Flute Tap

SKU: 18005461 Weight: 0.39 LBS Minimum Purchase: 1 unit
UPC:
$296.36 $275.62
(You save $20.74)
Shipping: Free Shipping

About This Item

EXOTAP VA-3 is the premium solution for tapping in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number34701908
Chamfer Length (Decimal Inch)0.148"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 OIL-V-SFT
Major Diameter (mm)20.00mm
Neck Length (mm)61.80mm
Number of Flutes4
Overall Length (mm)125.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)16.56mm
Square Length (mm)17.46mm
Square Width (mm)12.42mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)18.68mm
Tap Drill Size Minimum (mm)18.38mm
Thread Length (mm)20.00mm
Thread LimitD6
Thread SizeM20
Thread TypeMF
Series347
Product TypeSpiral Flute Tap
