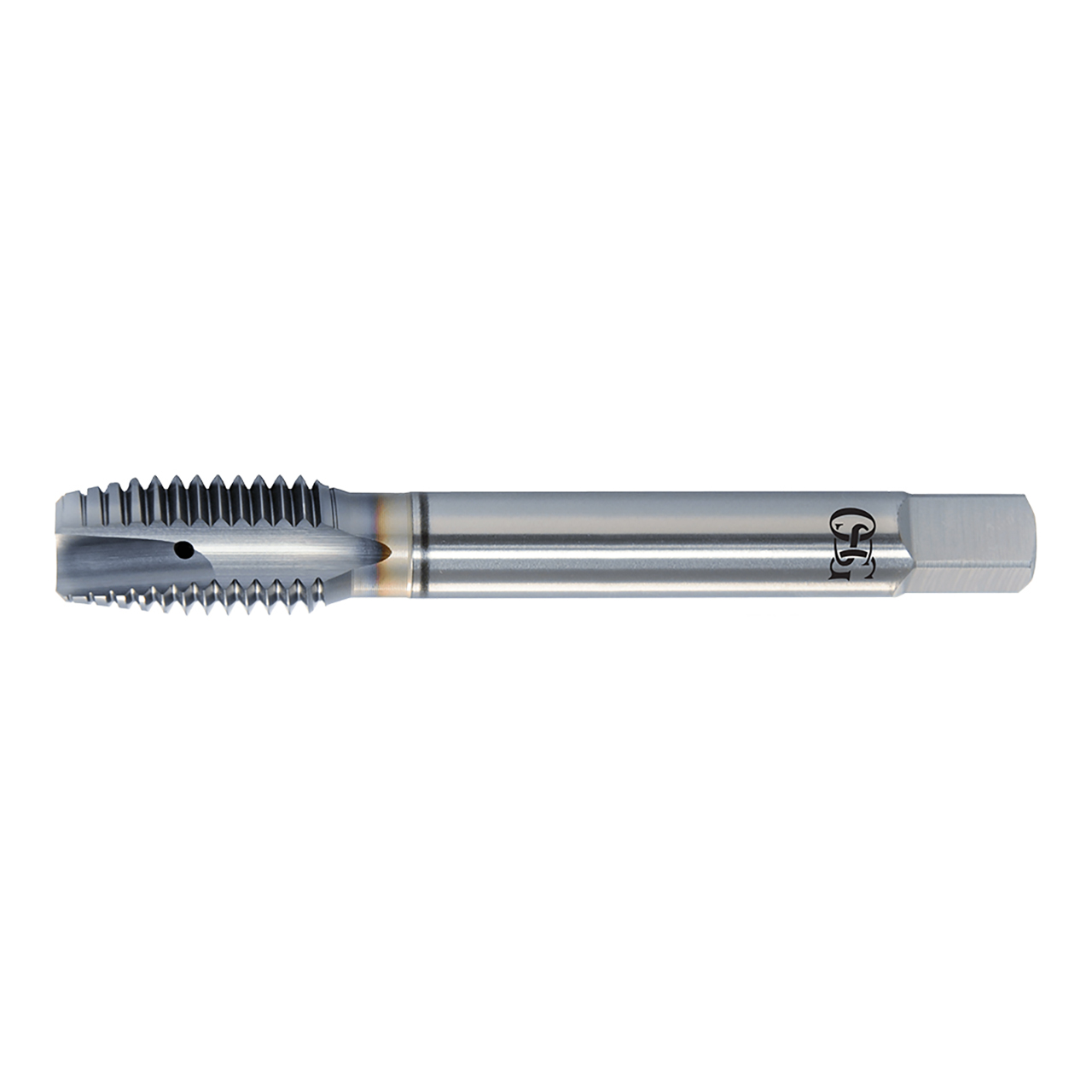

OSG 35000608 | EXOTAP M M8.00x1.25mm Thread Size x 8.08mm Shank x 15.00mm Length x 9.00mm OAL Plug (5P) Chamfer D5 3 Flute V Coated VC-10 350 Spiral Point Tap

OSG 35000608 | EXOTAP M M8.00x1.25mm Thread Size x 8.08mm Shank x 15.00mm Length x 9.00mm OAL Plug (5P) Chamfer D5 3 Flute V Coated VC-10 350 Spiral Point Tap

SKU: 18005489 Weight: 0.06 LBS Minimum Purchase: 1 unit
UPC:
$74.61 $69.39
(You save $5.22)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for unsurpassed performance in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number35000608
Chamfer Length (Decimal Inch)0.246"
Major Diameter (mm)8.00mm
Neck Length (mm)35.00mm
Number of Flutes3
Overall Length (mm)90.00mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
Maximum Tap Drill Size (mm)6.91mm
Minimum Tap Drill Size (mm)6.65mm
Thread Length (mm)15.00mm
Thread SizeM8
CoatingV
MaterialVC-10
Series350 Series
Product TypeSpiral Point Tap
