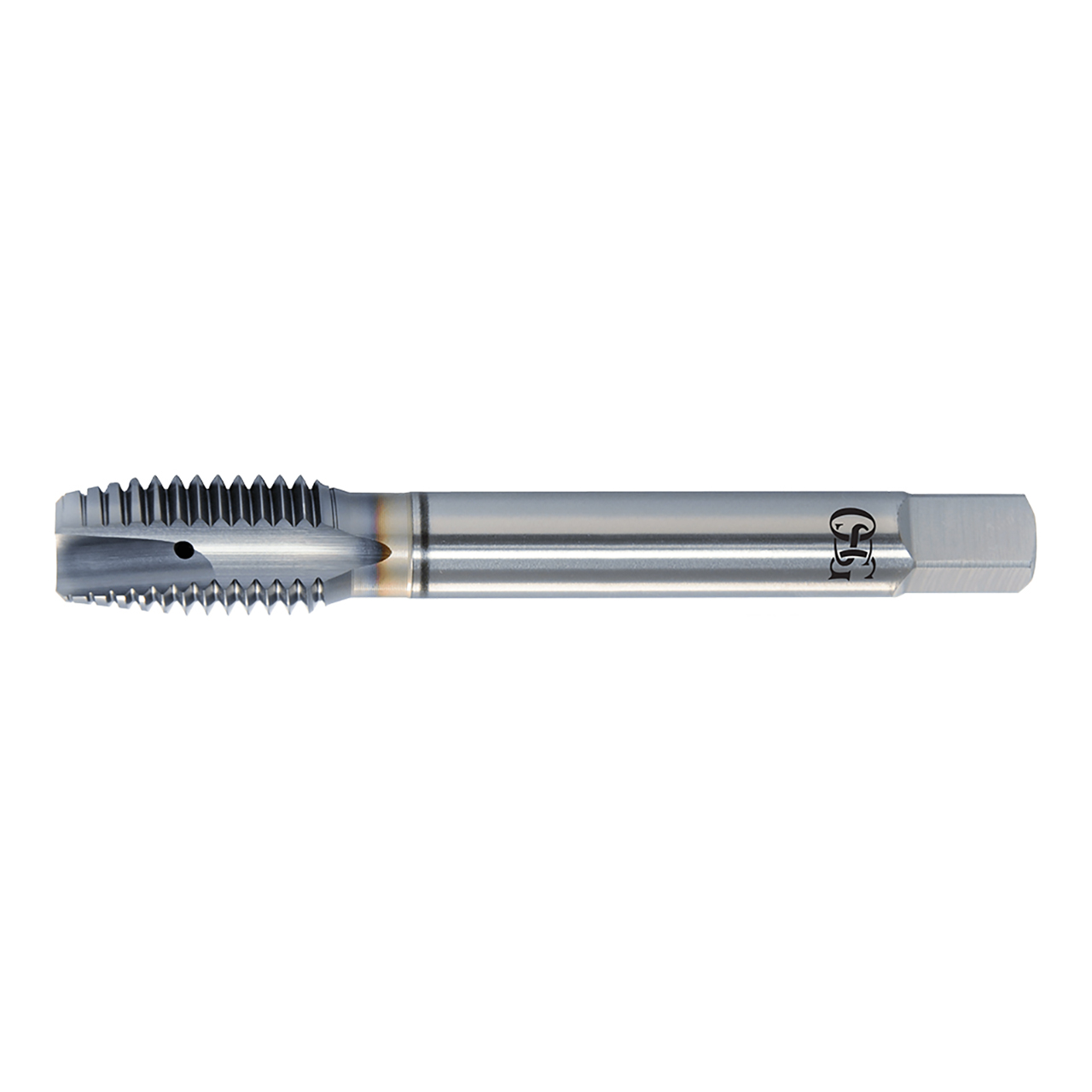

OSG 35001508 | EXOTAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 24.00mm Length x 11.00mm OAL Plug (5P) Chamfer D7 4 Flute V Coated VC-10 350 Spiral Point Tap

OSG 35001508 | EXOTAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 24.00mm Length x 11.00mm OAL Plug (5P) Chamfer D7 4 Flute V Coated VC-10 350 Spiral Point Tap

SKU: 18005498 Weight: 0.23 LBS Minimum Purchase: 1 unit
UPC:
$179.69 $167.11
(You save $12.58)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for unsurpassed performance in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number35001508
Chamfer Length (Decimal Inch)0.394"
Major Diameter (mm)16.00mm
Neck Length (mm)36.00mm
Number of Flutes4
Overall Length (mm)110.00mm
Pitch (mm)2.00mm
Shank Diameter (mm)12.19mm
Square Length (mm)14.29mm
Square Width (mm)9.14mm
Maximum Tap Drill Size (mm)14.21mm
Minimum Tap Drill Size (mm)13.84mm
Thread Length (mm)24.00mm
Thread SizeM16
CoatingV
MaterialVC-10
Series350 Series
Product TypeSpiral Point Tap
