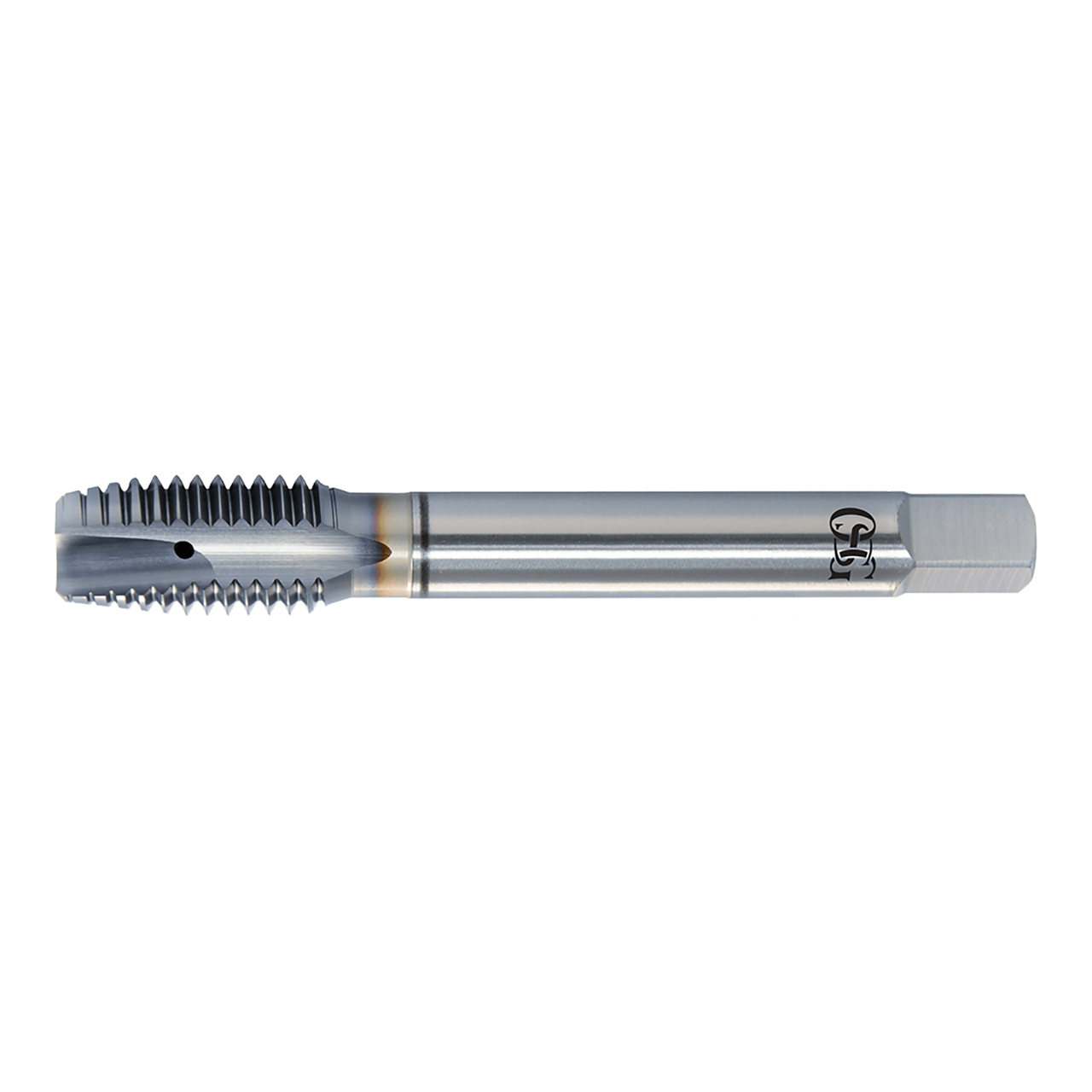

OSG 35001608 | EXOTAP MF M18.00x1.50mm Thread Size x 13.77mm Shank x 3.00mm Length x 11.00mm OAL Plug (5P) Chamfer D6 4 Flute V Coated VC-10 350 Spiral Point Tap

OSG 35001608 | EXOTAP MF M18.00x1.50mm Thread Size x 13.77mm Shank x 3.00mm Length x 11.00mm OAL Plug (5P) Chamfer D6 4 Flute V Coated VC-10 350 Spiral Point Tap

SKU: 18005499 Weight: 0.28 LBS Minimum Purchase: 1 unit
UPC:
$244.49 $227.37
(You save $17.12)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for unsurpassed performance in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number35001608
Chamfer Length (Decimal Inch)0.295"
Major Diameter (mm)18.00mm
Neck Length (mm)43.00mm
Number of Flutes4
Overall Length (mm)110.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)13.77mm
Square Length (mm)15.88mm
Square Width (mm)10.31mm
Maximum Tap Drill Size (mm)16.68mm
Minimum Tap Drill Size (mm)16.38mm
Thread Length (mm)30.00mm
Thread SizeM18
CoatingV
MaterialVC-10
Series350 Series
Product TypeSpiral Point Tap
