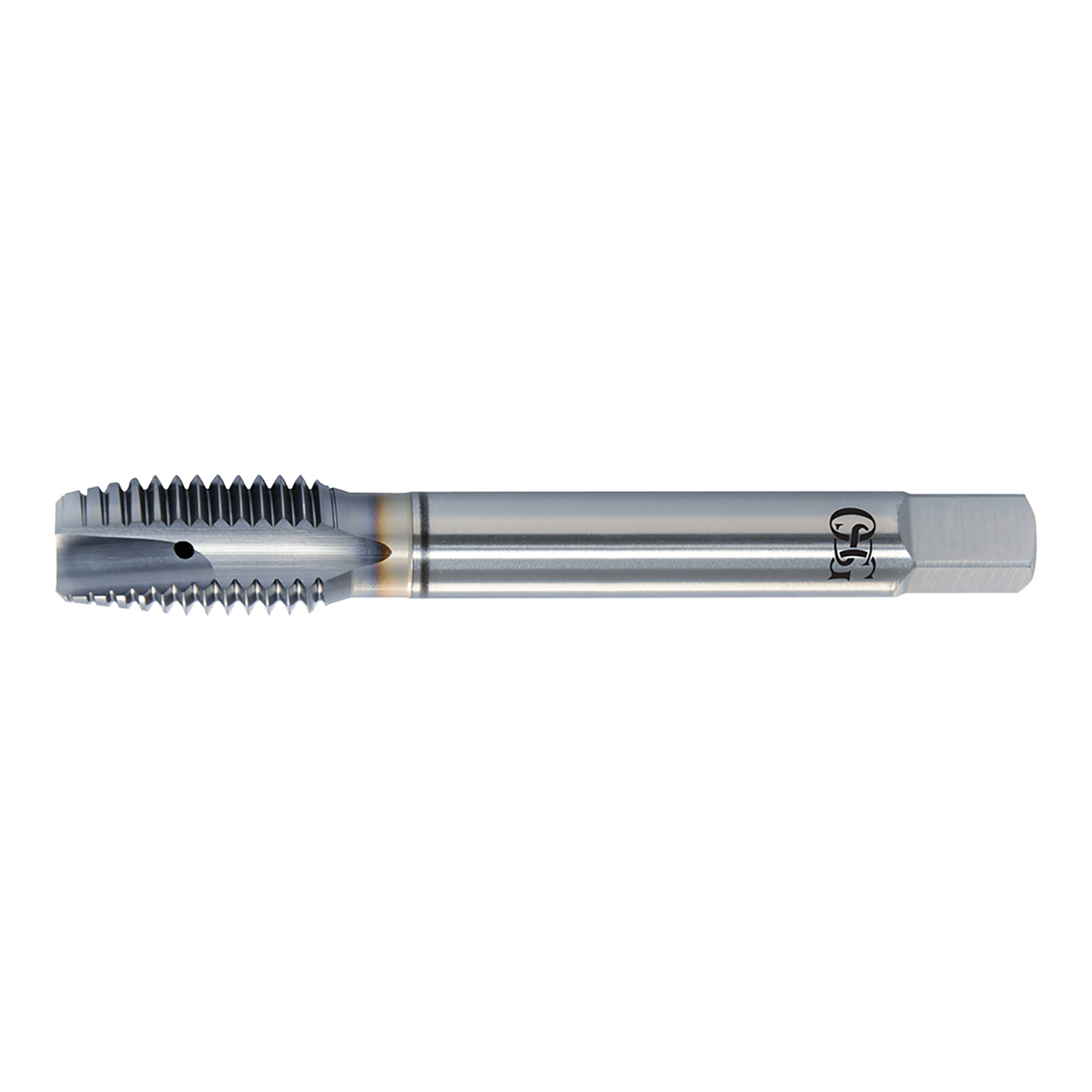

OSG 35002208 | EXOTAP MF M24.00x1.50mm Thread Size x 19.30mm Shank x 36.00mm Length x 14.00mm OAL Plug (5P) Chamfer D6 4 Flute V Coated VC-10 350 Spiral Point Tap

OSG 35002208 | EXOTAP MF M24.00x1.50mm Thread Size x 19.30mm Shank x 36.00mm Length x 14.00mm OAL Plug (5P) Chamfer D6 4 Flute V Coated VC-10 350 Spiral Point Tap

SKU: 18005505 Weight: 0.69 LBS Minimum Purchase: 1 unit
UPC:
$436.09 $405.56
(You save $30.53)
Shipping: Free Shipping

About This Item

EXOTAP VC-10 is the premium solution for unsurpassed performance in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number35002208
Chamfer Length (Decimal Inch)0.295"
Major Diameter (mm)24.00mm
Neck Length (mm)51.00mm
Number of Flutes4
Overall Length (mm)140.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)19.30mm
Square Length (mm)19.05mm
Square Width (mm)14.48mm
Maximum Tap Drill Size (mm)22.68mm
Minimum Tap Drill Size (mm)22.38mm
Thread Length (mm)36.00mm
Thread SizeM24
CoatingV
MaterialVC-10
Series350 Series
Product TypeSpiral Point Tap
