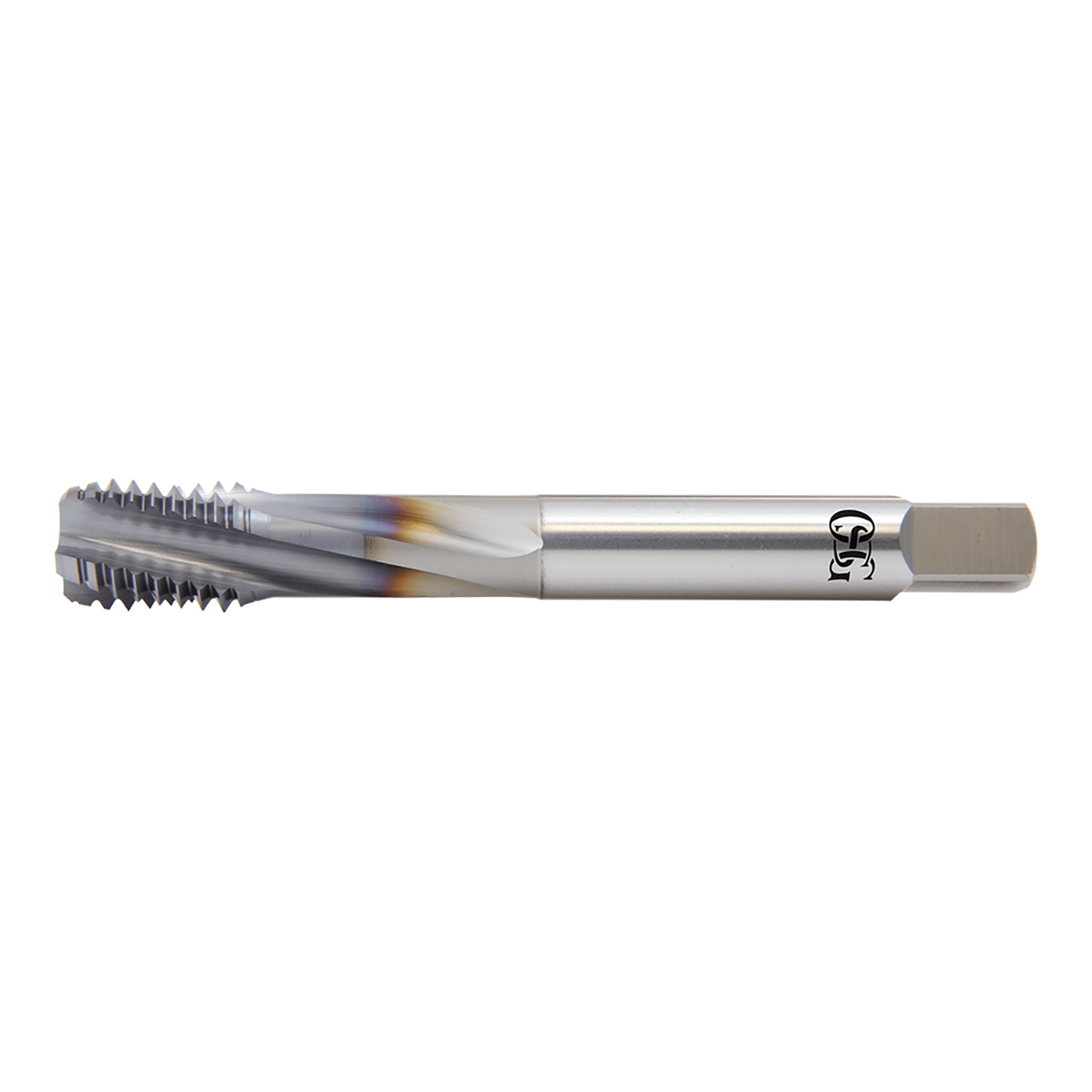

OSG 35100608 | EXOTAP MF M8.00x1.00mm Thread Size x 8.08mm Shank x 1.00mm Length x 9.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 351 Spiral Flute Tap

OSG 35100608 | EXOTAP MF M8.00x1.00mm Thread Size x 8.08mm Shank x 1.00mm Length x 9.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute V Coated VC-10 351 Spiral Flute Tap

SKU: 18005507 Weight: 0.07 LBS Minimum Purchase: 1 unit
UPC:
$91.21 $84.83
(You save $6.38)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number35100608
Chamfer Length (Decimal Inch)0.098"
Major Diameter (mm)8.00mm
Neck Length (mm)35.00mm
Number of Flutes3
Overall Length (mm)90.00mm
Pitch (mm)1.00mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
Maximum Tap Drill Size (mm)7.15mm
Minimum Tap Drill Size (mm)6.92mm
Thread Length (mm)10.00mm
Thread SizeM8
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series351 Series
Product TypeSpiral Flute Tap
