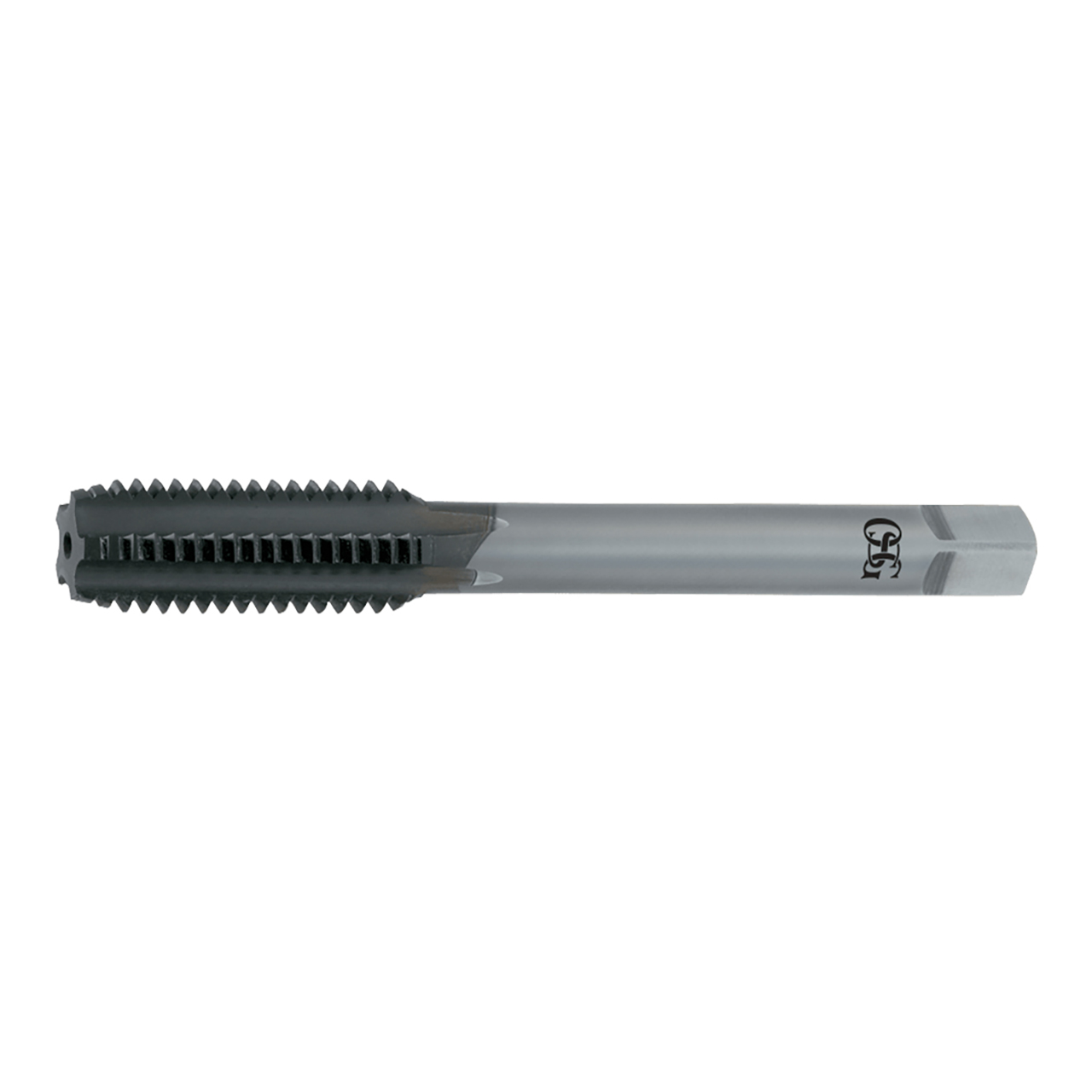

OSG 3590616 | EXOCARB M M10.00x1.50mm Thread Size x 7.00mm Shank x 24.00mm Length x 75.00mm OAL Modified Bottom (2.5P) Chamfer 5 Flute DIAMOND Coated Carbide 359 Straight Flute Tap

OSG 3590616 | EXOCARB M M10.00x1.50mm Thread Size x 7.00mm Shank x 24.00mm Length x 75.00mm OAL Modified Bottom (2.5P) Chamfer 5 Flute DIAMOND Coated Carbide 359 Straight Flute Tap

SKU: 10292709 Weight: 0.15 LBS Minimum Purchase: 1 unit
UPC:
$1,127.46 $1,071.09
(You save $56.37)
Shipping: Free Shipping

About This Item

The EXOCARB Diamond Taps are premium solutions for High SiC Aluminum, MMC, and Carbon Fiber. The taps feature OSG's patented diamond coating for an extended tool life.

Features & Benefits:

  • Microgran carbide body: Superior hardness & wear resistance versus High Speed Steel
  • Pateneted OSG CVD Ultra-fine Diamond Coating: Ultra-fine coating ensures sharper cutting edges while diamond coating extends life up to 50X that of similar uncoated routers
  • DIN Overall Length: Greater reach capability

Product Specifications
Manufacturer Part Number3590616
Chamfer Length (Decimal Inch)0.148"
Chamfer TypeModified Bottom (2.5P)
Class of Fit6H
Cutting DirectionRight Hand
List NameDIA-OTT
Major Diameter (mm)10.00mm
Number of Flutes5
Overall Length (mm)75.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)7.00mm
Square Length (mm)8.00mm
Square Width (mm)5.50mm
MaterialCarbide
CoatingDIAMOND
Tap Drill Size Maximum (mm)8.68mm
Tap Drill Size Minimum (mm)8.38mm
Thread Length (mm)24.00mm
Thread SizeM10
Thread TypeM
Series359
Product TypeStraight Flute Tap
