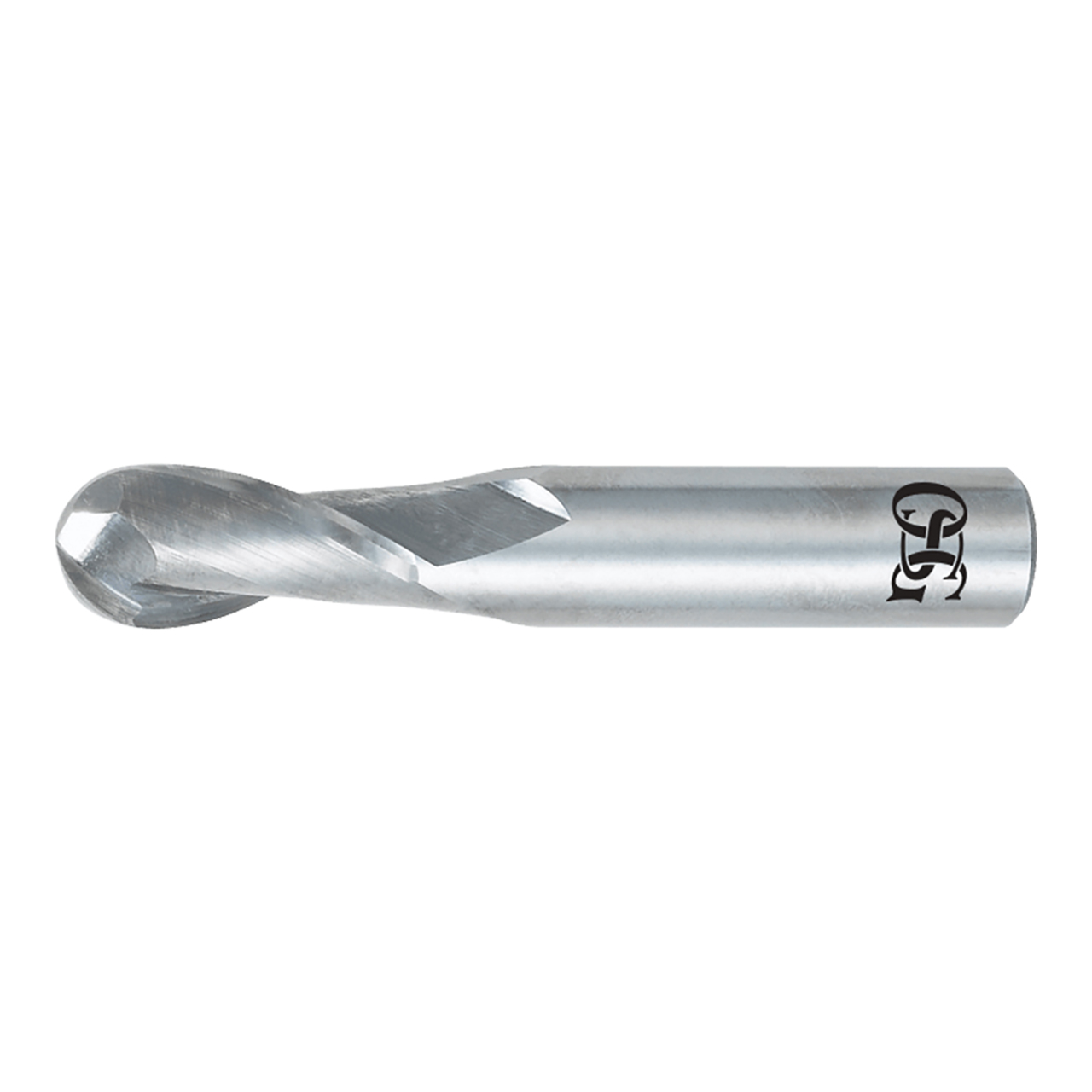

Standard Carbide End Mills for General Milling Applications.
| Manufacturer Part Number | 402-2500-BN11 |
| Corner Radius (Decimal Inch) | 0.125" |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.002" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.250" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.750" |
| List Name | STANDARD CARBIDE BN |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Material | Carbide |
| Coating | TiAlN |
| Series | 402BN |
| Product Type | Ball End Mill |
