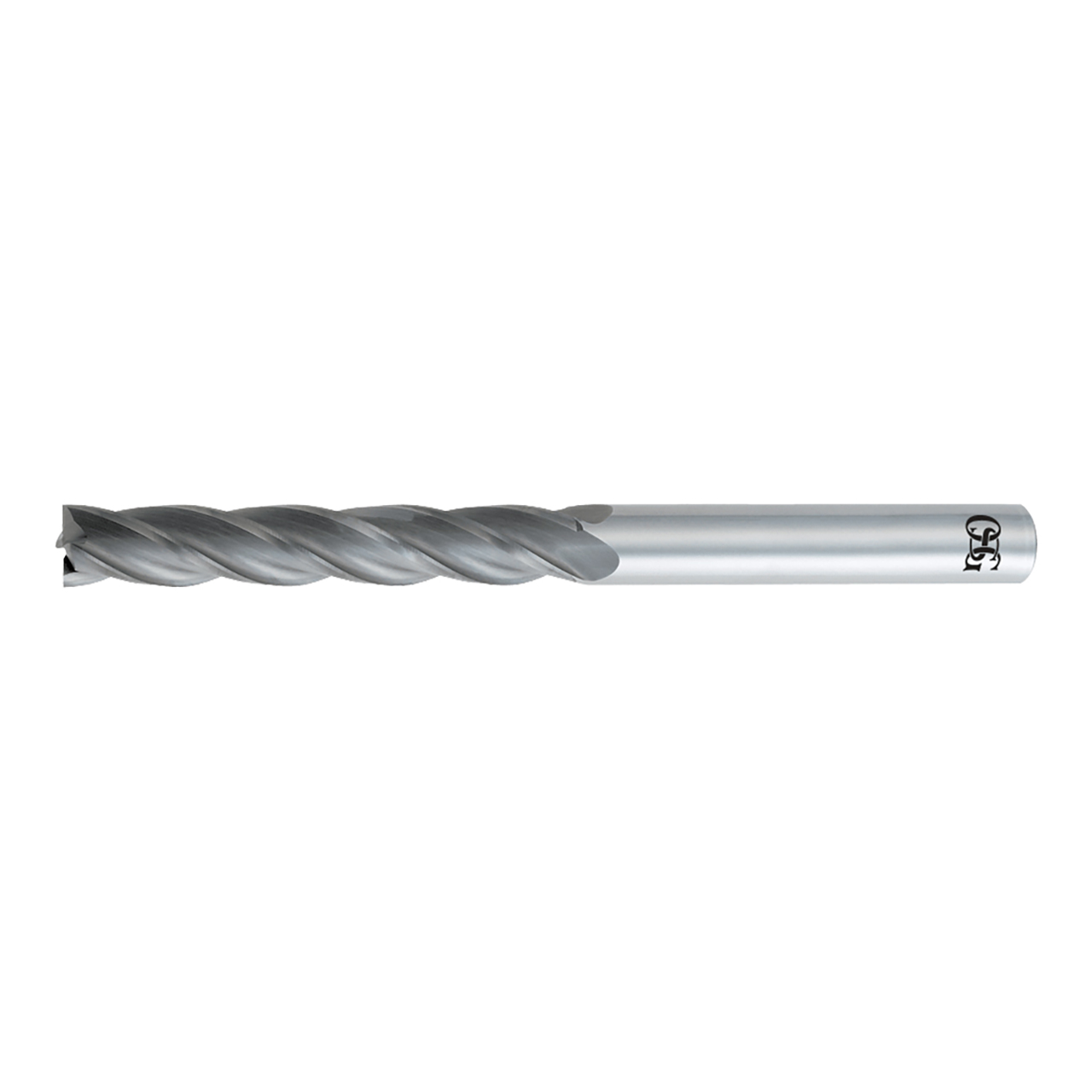

Standard Carbide End Mills for General Milling Applications.
| Manufacturer Part Number | 484-625011 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.002" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.625" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 3.000" |
| List Name | STANDARD CARBIDE SQ |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 6.000" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Material | Carbide |
| Coating | TiAlN |
| Series | 484 |
| Product Type | Square End Mill |
