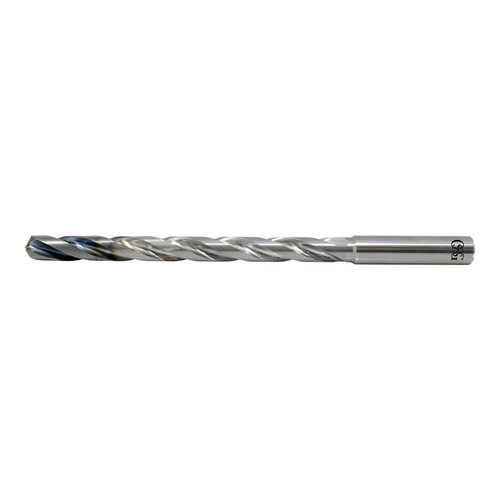

The EXOPRO Mega Muscle drill is the world's first 3-flute drill for steels. Patented geometry permits stable chip ejection, even with less chip pocket space inherent in 3-flute drills. The result is up to 3X faster than 2-flute drills and up to 3X longer life.
Features & Benefits:
- OSG's WD1 Nano Coating Technology: Higher coating oxidation temp & hardness dramatically improve wear resistance
- Patented Flute Geometry: Breaks steel chips into small manageable pieces for easy ejection
- Triple coolant ports: Optimum coolant delivered to cutting edges for longer life and smooth chip evacuation
Product Specifications
| Manufacturer Part Number | 563043811 |
| Diameter (Decimal Inch) | 0.438" |
| Diameter (mm) | 11.11mm |
| Flute Length (mm) | 155.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 215.00mm |
| Shank Diameter (Decimal Inch) | 0.438" |
| Coating | WD1 |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Point Angle (Degree) | 140 Degree |
| Series | 5630 Series |
| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
