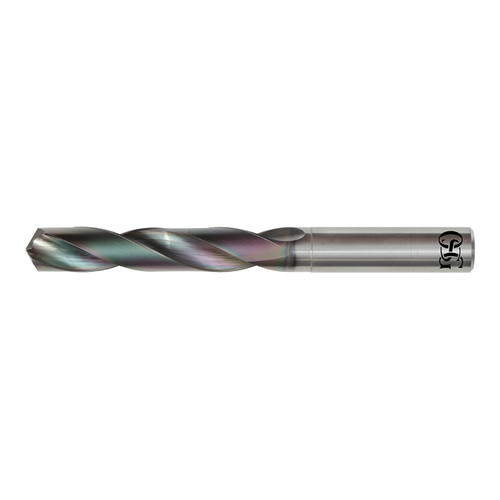

The EXOCARB-AD drill series is OSG's premium line of solid carbide high performance drills. New wavy point edge form creates sharp cutting action for reduced thrust forces, whileproprietary EgiAs coating provides drastically higher hardness and heat resistance, enabling higher drilling speeds and incredible tool life.
Features & Benefits:
- OSG's EgiAs Nano Coating Technology: Higher coating oxidation temp & hardness dramatically improve wear resistance
- Wavy form cutting edge design: Sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
- Ultra-fine micrograin carbide: Smaller grain size yield more wear resistance and better coating adhesion properties for long life
Product Specifications
| Manufacturer Part Number | 631042111 |
| Diameter (Decimal Inch) | 0.422" |
| Diameter (mm) | 10.72mm |
| Flute Length (mm) | 71.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 118.00mm |
| Shank Diameter (Decimal Inch) | 0.438" |
| Coating | EgiAs |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Point Angle (Degree) | 140 Degree |
| Series | 6310 Series |
| Product Type | Jobber Length Drill Bit |
