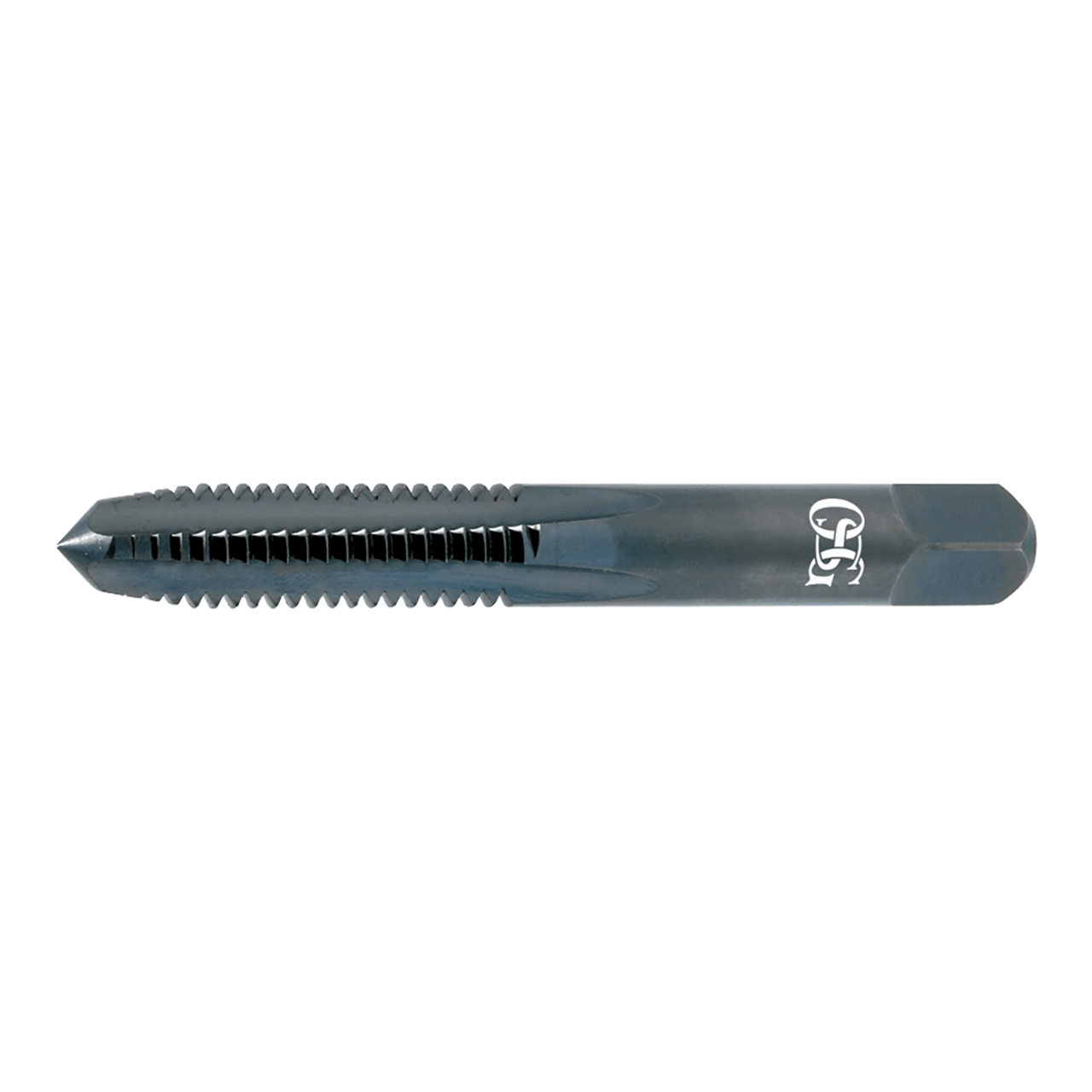

OSG 653 | MF M8.00x1.00mm Thread Size x 6.20mm Shank x 22.00mm Length x 7.00mm OAL Bottom (1.5P) Chamfer OH2 4 Flute BRIGHT Coated HSS 121 Straight Flute Tap

OSG 653 | MF M8.00x1.00mm Thread Size x 6.20mm Shank x 22.00mm Length x 7.00mm OAL Bottom (1.5P) Chamfer OH2 4 Flute BRIGHT Coated HSS 121 Straight Flute Tap

SKU: 18005652 Weight: 0.04 LBS Minimum Purchase: 1 unit
UPC:
$19.87 $8.94
(You save $10.93)
Shipping: Calculated at Checkout

About This Item

General Purpose straight flute tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Straight Flute: For blind and through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN surface treatments: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number653
Chamfer Length (Decimal Inch)0.059"
Major Diameter (mm)8.00mm
Neck Length (mm)37.00mm
Number of Flutes4
Overall Length (mm)70.00mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.20mm
Square Length (mm)8.00mm
Square Width (mm)5.00mm
Maximum Tap Drill Size (mm)7.15mm
Minimum Tap Drill Size (mm)6.92mm
Thread Length (mm)22.00mm
Thread SizeM8
CoatingBright
MaterialHSS
Series121 Series
Product TypeStraight Flute Tap
