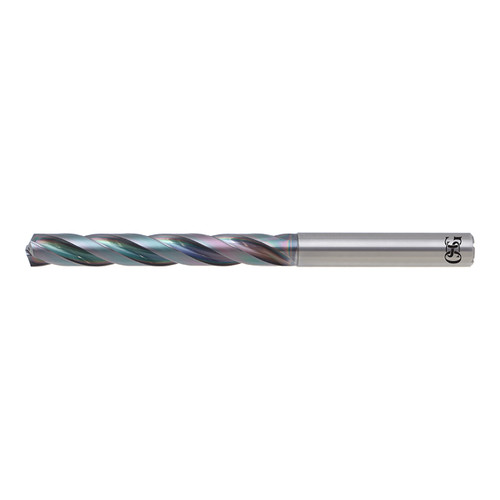

A Brand ADO-TRS is an Advanced Performance High Feed 3-Flute Carbide Drill. Patented geometry permits stable chip ejection, even with less chip pocket space inherent in 3-flute drills. The result is up to 3X faster than 2-flute drills and up to 3X longer life.
Features & Benefits:
- EgiAs Coating: For exceptional wear resistance and toughness
- 3 Flute Design: For reduced vibration and stable drilling
- Coolant Through: For reduced heat and improved chip evacuation
Product Specifications
| Manufacturer Part Number | 661020317 |
| Coolant Through | Yes |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0007" |
| Cutting Diameter Tolerance (mm) | +0 / -0.018mm |
| Cutting Diameter Tolerance Specification | h8 |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 13/64" |
| Diameter (Decimal Inch) | 0.203" |
| Diameter (mm) | 5.16mm |
| Flute Length (mm) | 42.00mm |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| List Name | ADO-TRS-5D |
| Number of Flutes | 3 |
| Overall Length (mm) | 100.00mm |
| Point Angle (Degree) | 140 Degree |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | EgiAs |
| Series | 6610 |
| Product Type | Jobber Length Drill Bit |
