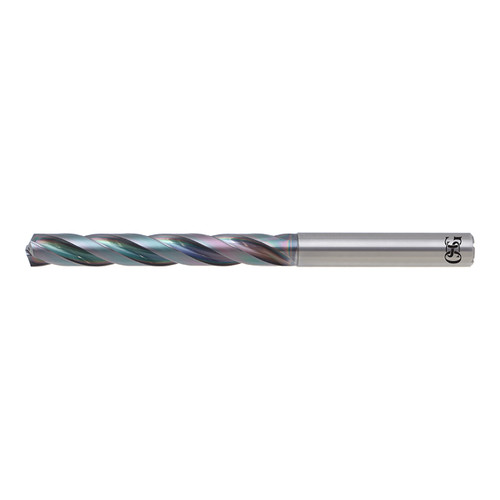

A Brand ADO-TRS is an Advanced Performance High Feed 3-Flute Carbide Drill. Patented geometry permits stable chip ejection, even with less chip pocket space inherent in 3-flute drills. The result is up to 3X faster than 2-flute drills and up to 3X longer life.
Features & Benefits:
- EgiAs Coating: For exceptional wear resistance and toughness
- 3 Flute Design: For reduced vibration and stable drilling
- Coolant Through: For reduced heat and improved chip evacuation
Product Specifications
| Manufacturer Part Number | 661026517 |
| Coolant Through | Yes |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0009" |
| Cutting Diameter Tolerance (mm) | +0 / -0.022mm |
| Cutting Diameter Tolerance Specification | h8 |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 17/64" |
| Diameter (Decimal Inch) | 0.266" |
| Diameter (mm) | 6.75mm |
| Flute Length (mm) | 55.00mm |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| List Name | ADO-TRS-5D |
| Number of Flutes | 3 |
| Overall Length (mm) | 109.00mm |
| Point Angle (Degree) | 140 Degree |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | EgiAs |
| Series | 6610 |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
