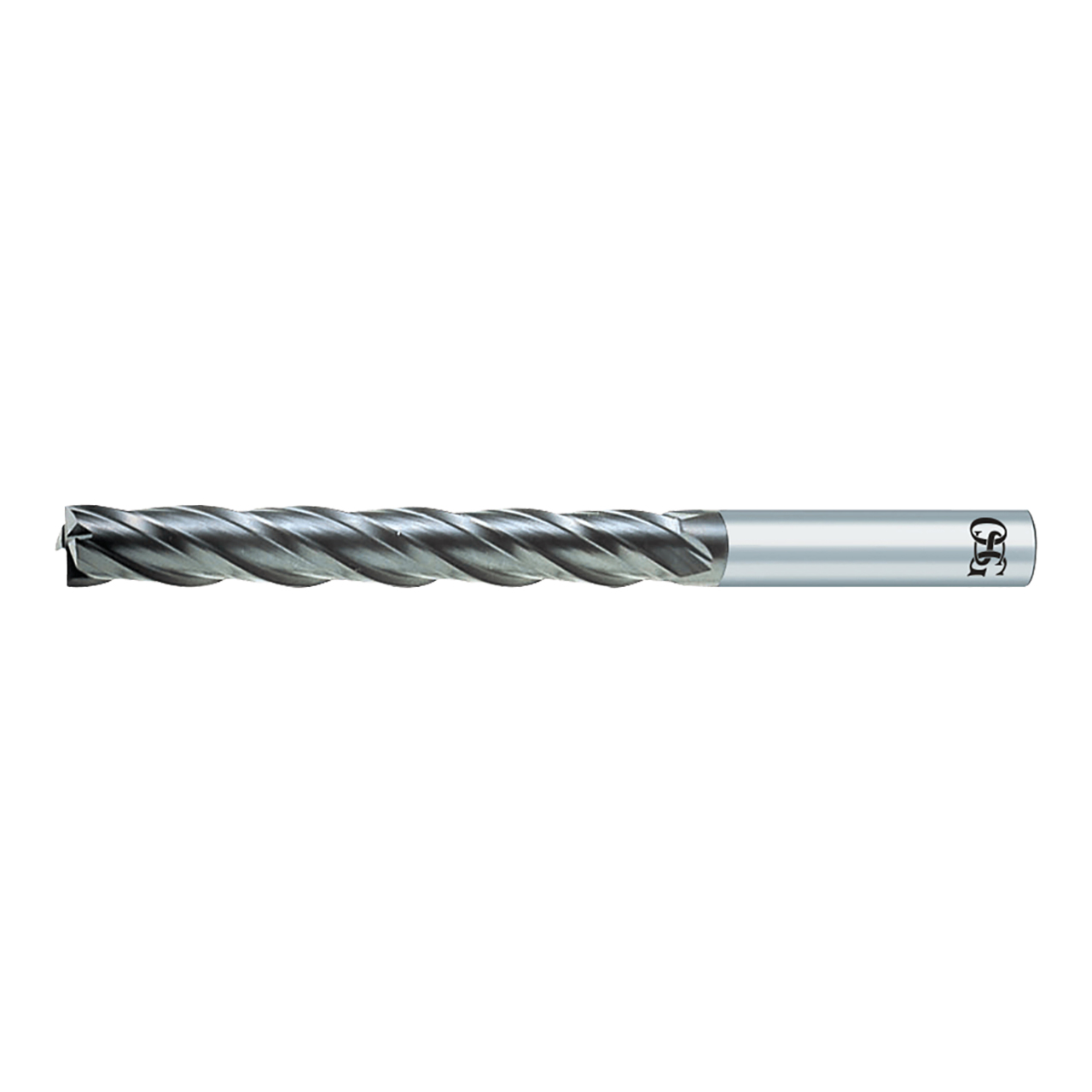

High Performance Diamond Coated End Mills for Graphite & Non-Ferrous Materials
Features & Benefits:
- Center cutting: R ramping and plunging process helps to shorten cycle time by improving the tool path
- New flute form: Balanced flute design that has high rigidity and large chip pocket make more stable and higher productivity
- DLC coating: High welding resistance and lubricity makes better surface finish of work piece in non-ferrous machining
- Nicked edge: Breaks chips into manageable shapes
Product Specifications
| Manufacturer Part Number | 70410916 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.002" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 3/16" |
| Diameter (Decimal Inch) | 0.188" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 1.000" |
| List Name | DIAMOND D-GF-EML |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.000" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | DIAMOND |
| Series | 7041 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
1.0000"
Number of Flutes:
4
Overall Length (Decimal Inch):
4.0000"
Material:
Carbide
Finish/Coating:
DIAMOND
