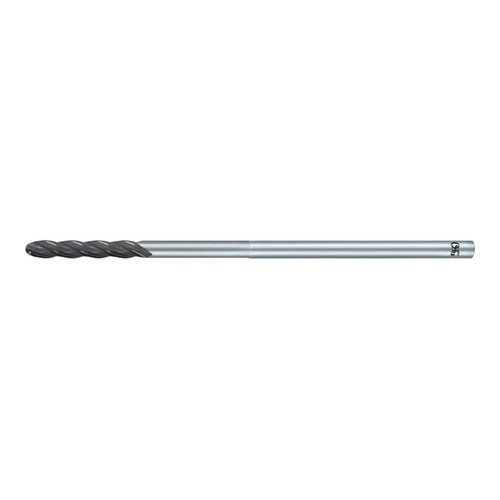

High Performance Diamond Coated Ball Mills for Graphite & Non-Ferrous Materials
Product Specifications
| Manufacturer Part Number | 72310616 |
| Corner Radius (Decimal Inch) | 0.063" |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0004" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/8" |
| Diameter (Decimal Inch) | 0.125" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.750" |
| List Name | DIAMOND DIA-LN-EBM |
| Neck Diameter (Decimal Inch) | 0.120" |
| Neck Length (Decimal Inch) | 1.500" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.000" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | DIAMOND |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Corner Radius (Decimal Inch):
0.0630"
Cutting Direction:
Right Hand
Diameter (Inch):
1/8"
Diameter (Decimal Inch):
0.1250"
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
0.7500"
Neck Diameter (Decimal Inch):
0.1200"
Neck Length (Decimal Inch):
1.5000"
Number of Flutes:
4
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Decimal Inch):
0.1250"
Material:
Carbide
Finish/Coating:
DIAMOND
