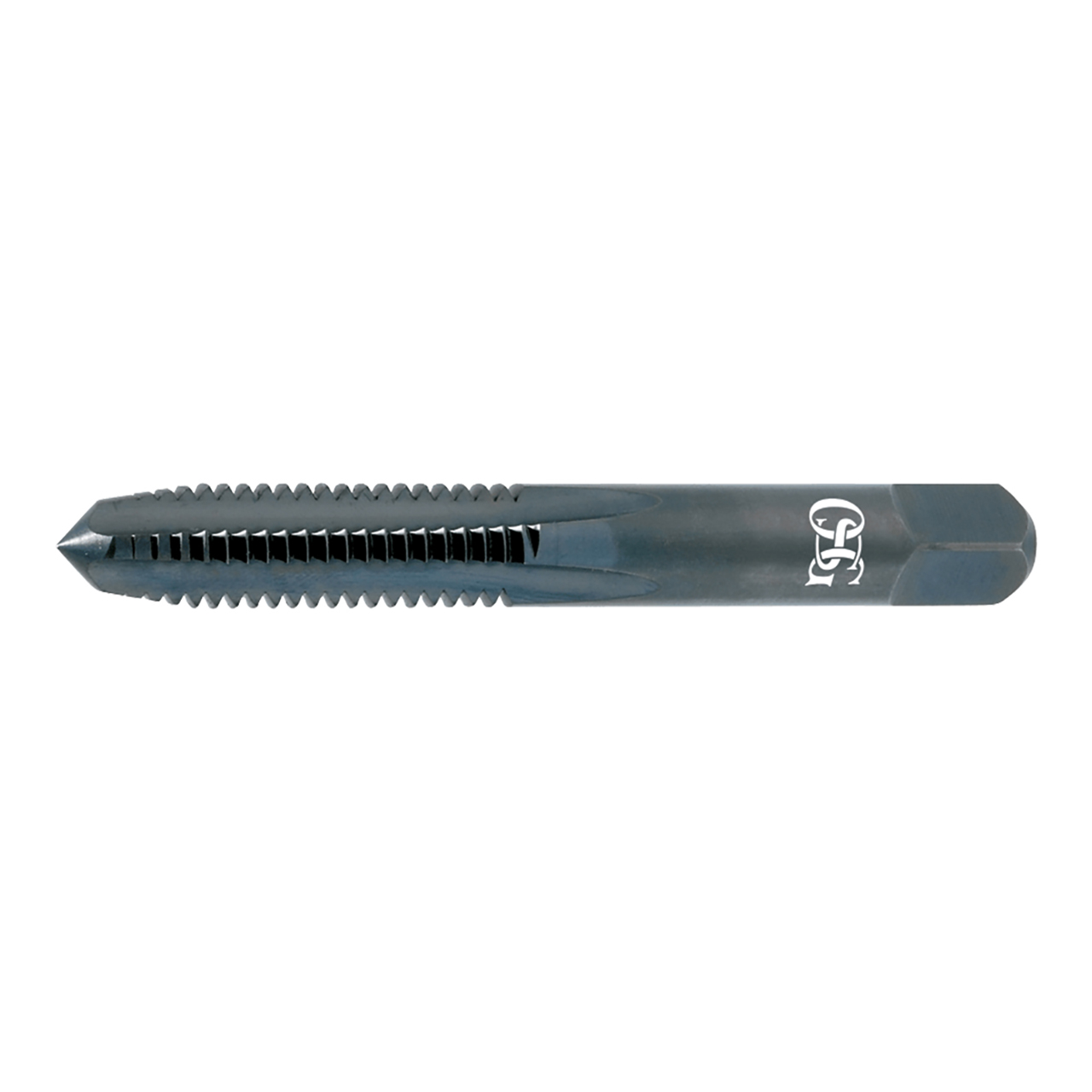

OSG 743 | M10 x 1.25mm Thread Size x 24.00mm Thread Length MF OH2 Bottom (1.5P) Chamfer Type 4 Flute Right Hand Bright Coated HSS 121 Straight Flute Tap

$37.42 $16.84
(You save $20.58)
Brand:
OSG
Overall Length (mm):
75.00mm
Number of Flutes:
4
Material:
HSS
Finish/Coating:
Bright
interval quantity:
1
SKU:
18005663
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 743 | M10 x 1.25mm Thread Size x 24.00mm Thread Length MF OH2 Bottom (1.5P) Chamfer Type 4 Flute Right Hand Bright Coated HSS 121 Straight Flute Tap

General Purpose straight flute tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Straight Flute: For blind and through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN surface treatments: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number743
Chamfer Length (Decimal Inch)0.074"
Major Diameter (mm)10.00mm
Neck Length (mm)41.00mm
Number of Flutes4
Overall Length (mm)75.00mm
Pitch (mm)1.25mm
Shank Diameter (mm)7.00mm
Square Length (mm)8.00mm
Square Width (mm)5.50mm
Maximum Tap Drill Size (mm)8.91mm
Minimum Tap Drill Size (mm)8.65mm
Thread Length (mm)24.00mm
Thread SizeM10
CoatingBright
MaterialHSS
Series121 Series
Product TypeStraight Flute Tap
