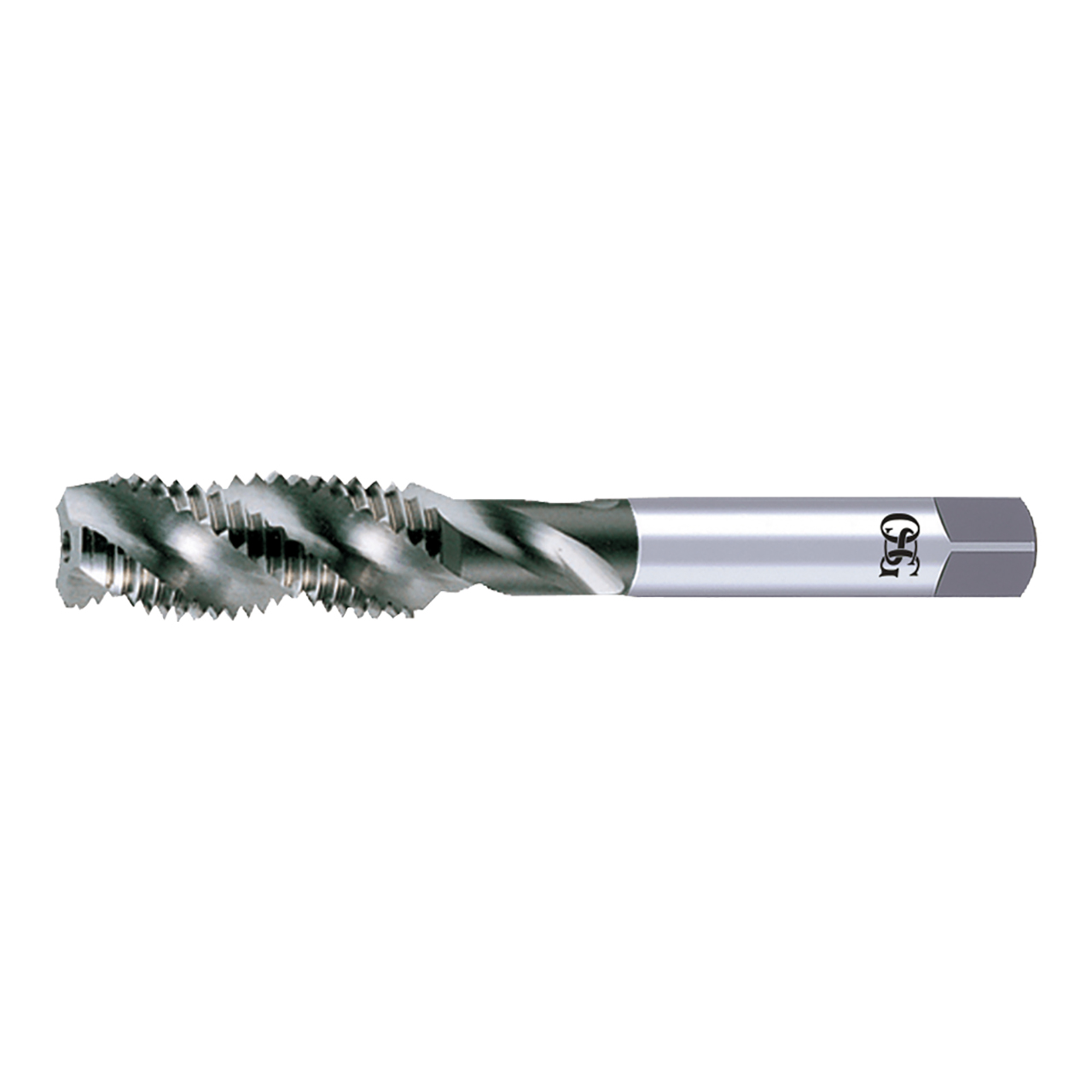

General Purpose tap series provides exceptional value for tapping helicoil (STI) threads in a variety of ferrous and nonferrous metals.
Features & Benefits:
- HSS material: Increased wear resistance
- Spiral Flute: For blind hole applications
- Inch & Metric: Complete Offering
- Screw thread insert capability: Repair stripped threaded holes
Product Specifications
| Manufacturer Part Number | 8007200 |
| Chamfer Length (Decimal Inch) | 0.047" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 50 Degree |
| Helix Direction | Right Hand |
| List Name | GENERAL PURPOSE-SFT STI |
| Major Diameter (Decimal Inch) | 0.164" |
| Neck Length (Decimal Inch) | 0.940" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.382" |
| Shank Diameter (Decimal Inch) | 0.220" |
| Square Length (Decimal Inch) | 0.281" |
| Square Width (Decimal Inch) | 0.165" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.178" |
| Tap Drill Size Minimum (Decimal Inch) | 0.171" |
| Thread Length (Decimal Inch) | 0.311" |
| Thread Limit | H3 |
| Thread Size | No. 8 |
| Thread Size (Number) | #8 |
| Thread Type | UNC STI |
| Thread Per Inch (TPI) | 32 TPI |
| Series | S108 |
| Product Type | Spiral Flute STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

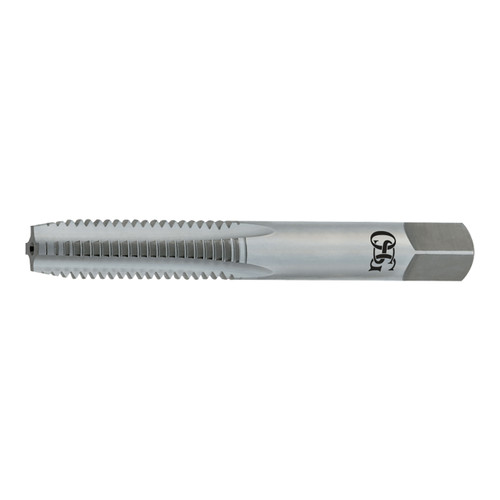

Related Products
