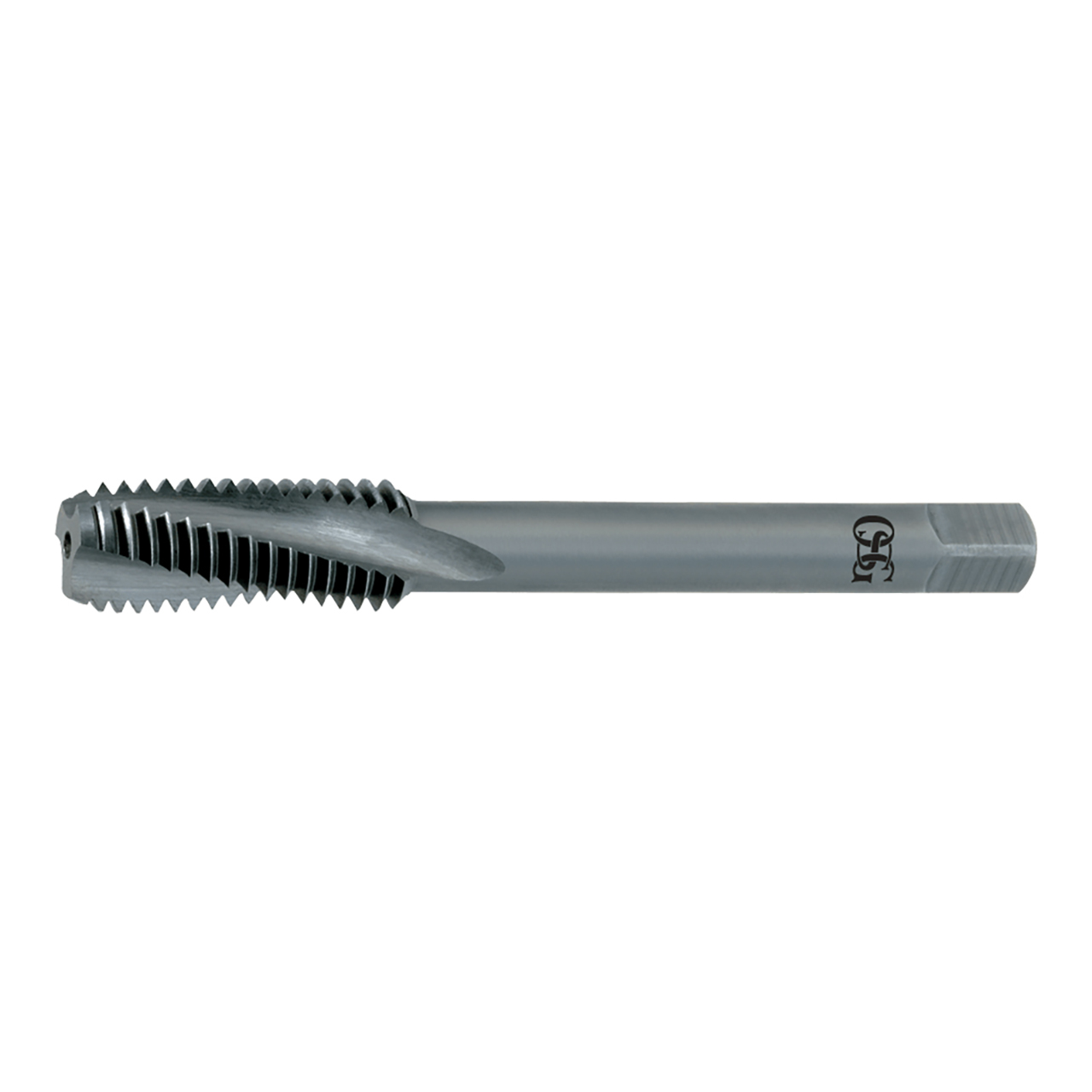

OSG 8315261 | EXOCARB M M4.00x0.70mm Thread Size x 5.00mm Shank x 13.00mm Length x 52.00mm OAL Bottom (1.5P) Chamfer OH3 3 Flute BRIGHT Coated Carbide 389 Spiral Flute Tap

OSG 8315261 | EXOCARB M M4.00x0.70mm Thread Size x 5.00mm Shank x 13.00mm Length x 52.00mm OAL Bottom (1.5P) Chamfer OH3 3 Flute BRIGHT Coated Carbide 389 Spiral Flute Tap

SKU: 10294505 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$252.00 $239.40
(You save $12.60)
Shipping: Calculated at Checkout

About This Item

The EXOCARB Carbide Taps are designed to excel in Alminum, Alminum Casting and Cast Iron. TiAN and TiCN Coating are available upon request for a longer tool life.

Features & Benefits:

  • Micrograin carbide body: Superior hardness & wear resistance versus High Speed Steel
  • Modified Bottom: Provides versatile use in both through and blind hole applications
  • TiCN and TiALN coatings available upon requests: Provides High hardness with improved wear resistance and Increased production levels with longer tool life.

Product Specifications
Manufacturer Part Number8315261
Chamfer Length (Decimal Inch)0.041"
Chamfer TypeBottom (1.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)15 Degree
Helix DirectionRight Hand
List NameOT-SFT
Major Diameter (mm)4.00mm
Neck Length (mm)21.00mm
Number of Flutes3
Overall Length (mm)52.00mm
Pitch (mm)0.70mm
Shank Diameter (mm)5.00mm
Square Length (mm)7.00mm
Square Width (mm)4.00mm
MaterialCarbide
CoatingBright
Tap Drill Size Maximum (mm)3.42mm
Tap Drill Size Minimum (mm)3.24mm
Thread Length (mm)13.00mm
Thread LimitOH3
Thread SizeM4
Thread TypeM
Series389
Product TypeSpiral Flute Tap
