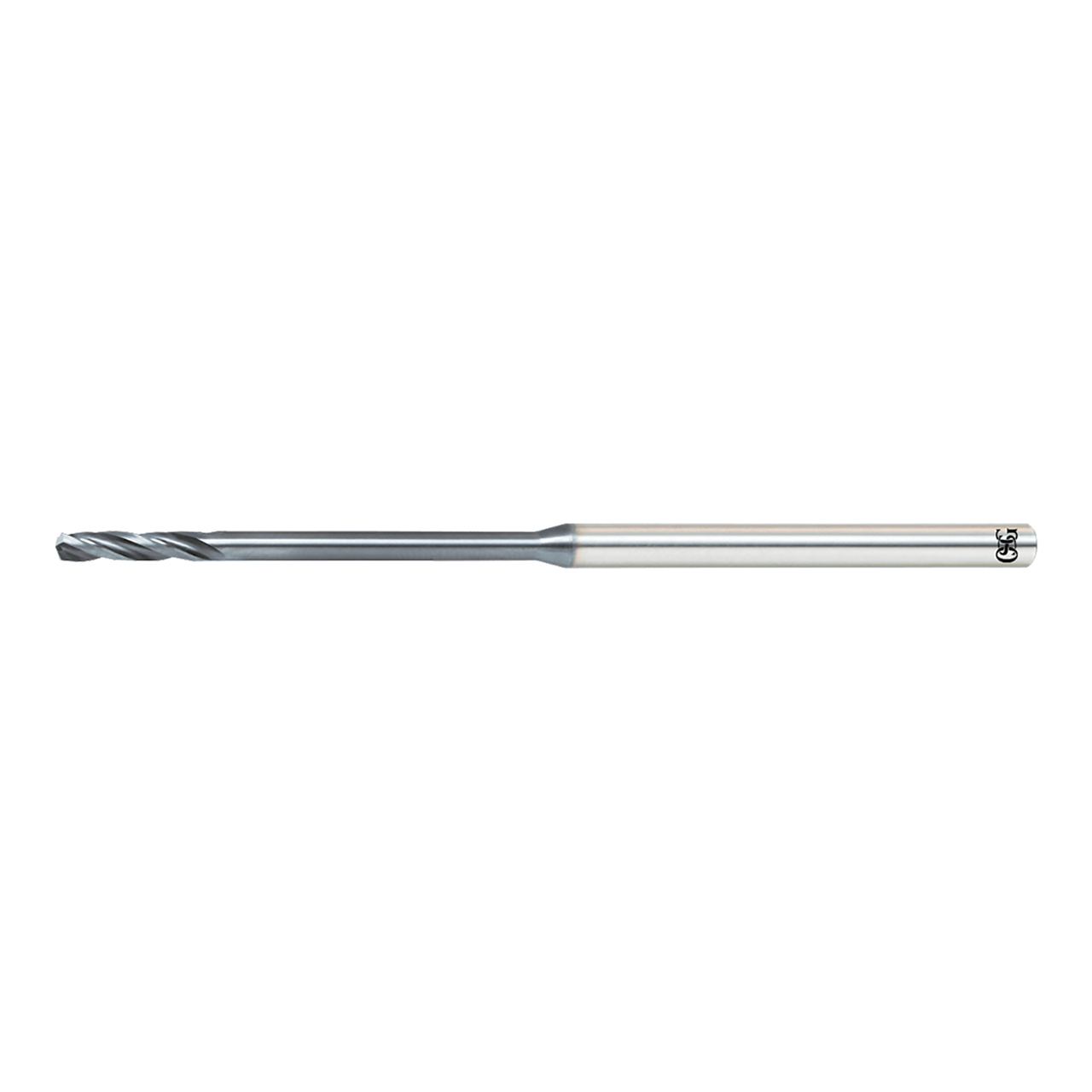

The EXOCARB MAX-MINI drill is a 3-flute miniature drills designed specifically for processing small holes up to 20 X diameter in material up to 65 HRC.
Features & Benefits:
- OSG's EXO Coating Technology: A multi-layered TiAlN coating provides greater resistance to heat and wear, ideal for applications in hardened steel.
- 3-Flute High Rigid Flute Form: A larger core diameter that provides the rigidity needed to drill hardened steels.
- Reduced Neck Configuration: Further optimizes tool body rigidity.
Product Specifications
| Manufacturer Part Number | 8569015 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0006" |
| Cutting Diameter Tolerance (mm) | +0 / -0.014mm |
| Cutting Diameter Tolerance Specification | h8 |
| Cutting Direction | Right Hand |
| Diameter (Decimal Inch) | 0.059" |
| Diameter (mm) | 1.50mm |
| Flute Length (mm) | 7.50mm |
| Helix Angle (Degree) | 25 Degree |
| Helix Direction | Right Hand |
| List Name | FHL-GDTS |
| Neck Length (mm) | 20.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 57.00mm |
| Point Angle (Degree) | 140 Degree |
| Shank Diameter (mm) | 3.00mm |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | EXO |
| Series | 5310 |
| Product Type | Micro Drill Bit |
