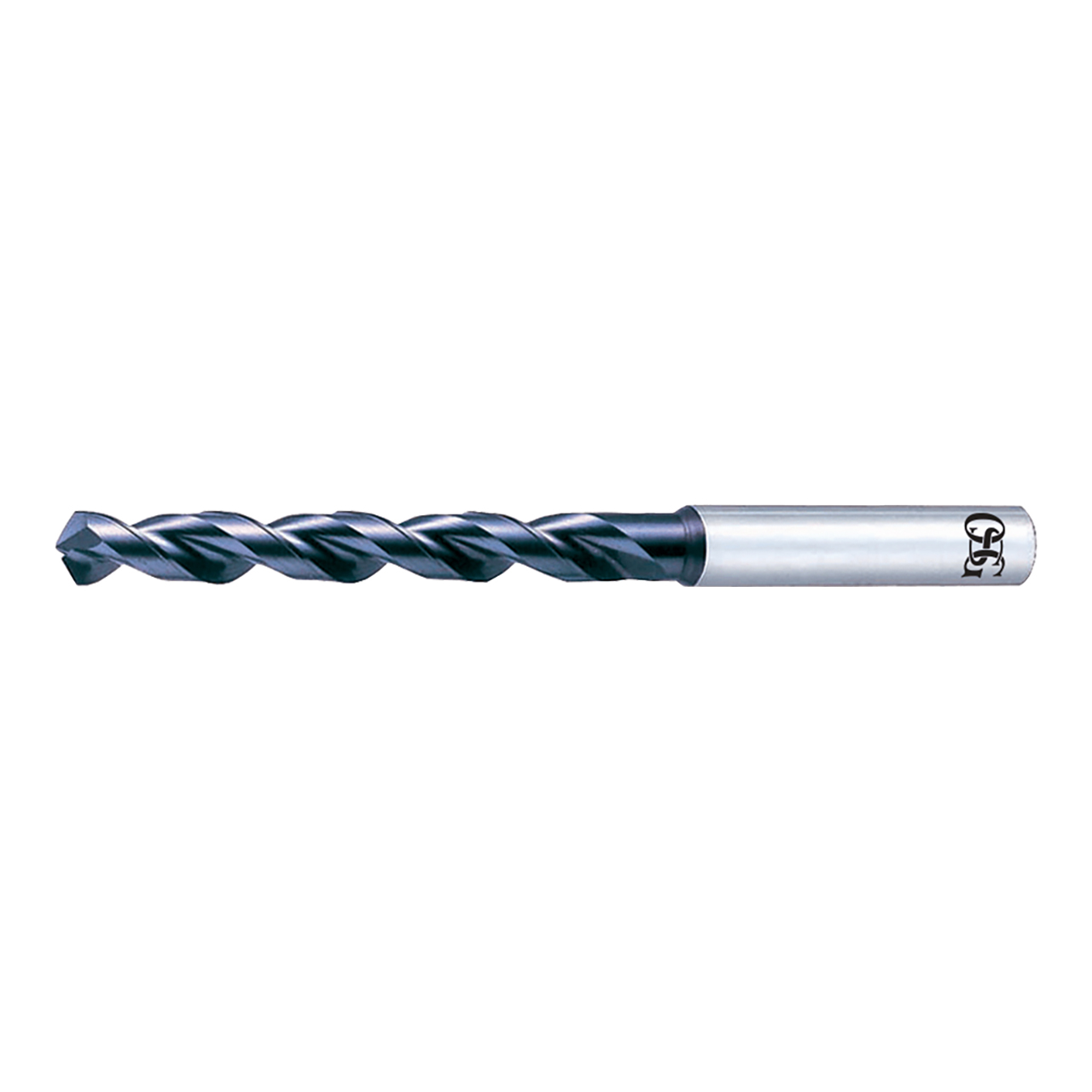

VP GDR Drills Parabolic Drill Designed for Ferrous and Non-ferrous Materials.
| Manufacturer Part Number | 8593155 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0011" |
| Cutting Diameter Tolerance (mm) | +0 / -0.027mm |
| Cutting Diameter Tolerance Specification | h8 |
| Cutting Direction | Right Hand |
| Diameter (Decimal Inch) | 0.610" |
| Diameter (mm) | 15.50mm |
| Flute Length (mm) | 112.00mm |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction | Right Hand |
| List Name | VP-GDR |
| Number of Flutes | 2 |
| Overall Length (mm) | 172.00mm |
| Point Angle (Degree) | 120 Degree |
| Shank Diameter (mm) | 16.00mm |
| Material | XPM |
| Coating | V |
| Series | 2000 |
| Product Type | Jobber Length Drill Bit |
